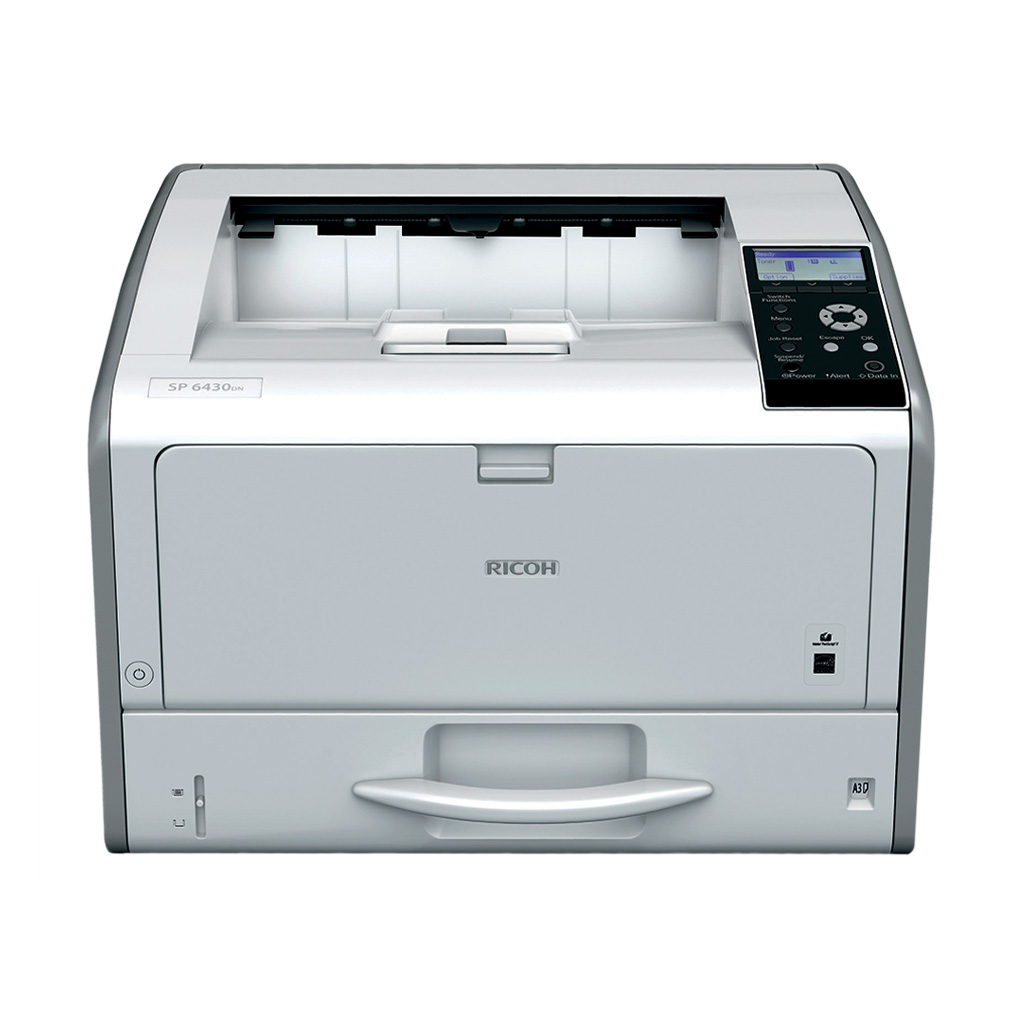

SP 6430DN

A3 black and white printer

  • Produces up to 38 prints per minute
  • High resolution 1200 x 1200 dpi
  • Handy 500 sheet paper tray
  • Environmentally friendly with low energy use

Save space and money while producing high quality reports and documents

An uncomplicated and small printer that keeps up with demanding workloads. The SP 6430DN delivers documents fast and affordably and can print on A3, so you can print posters, as well as larger size formats.

Quick printing with little maintenance

Print reports for your team that are ready in a flash so you can spend time getting work done. Versatile printing offers the ability to collate prints, produce and check sample prints. Robust enough to handle demanding offices, while simple to operate with a large operating panel. It even has a paper indication light to warn you if stock is running low.

  1. Low environmental impact
    ECO Night Sensor and weekly timer reduce energy consumption
  2. Save time
    First print ready in under 7 seconds and print directly from your smartphone or tablet for added convenience
  3. Small size, big capacity
    Print A3 size up to 220g/m2
  4. More media options
    A range of paper choices from recycled paper to labels and envelopes
Download PDF brochure

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • Produces up to 38 prints per minute
  • High resolution 1200 x 1200 dpi
  • Handy 500 sheet paper tray
  • Environmentally friendly with low energy use

Specifications

Functions
Print
HDD
250 GB—optional
Memory - standard

512 MB

Operation panel
4-line LCD
Physical dimensions (W x D x H)—other
459 x 392 x 347.5 mm—mainframe
474.5 x 416.4 x 347.5 mm—mainframe with 500-sheet paper bank TK2010
459 x 392 x 124 mm—500-sheet paper bank TK2010
Weight—other
22.5 kg or less—mainframe
28.5 kg or less—mainframe with 500-sheet paper bank TK2010
6 kg or less—500-sheet paper bank TK2010
Standard input capacity (sheets)
600
Maximum input capacity (sheets)
2,100
Standard output capacity (sheets)
500
Maximum output capacity (sheets)
500
Supported media
Standard tray
Plain paper 1–2, thick paper 1–3, thin paper, recycled paper, special paper 1–3, colour paper, letterhead, pre‑printed paper, pre-punched paper, bond paper, label paper, envelopes

Bypass tray
Plain paper 1–2, thick paper 1–3, thin paper, recycled paper, special paper 1–3, colour paper, letterhead, pre‑printed paper, pre-punched paper, bond paper, label paper, envelopes, OHP transparencies

Paper bank TK2010
Plain paper 1–2, thick paper 1–3, thin paper, recycled paper, special paper 1–3, colour paper, letterhead, pre‑printed paper, pre-punched paper, bond paper, label paper
Maximum paper size
A3
Media weight (g/m2)
52–220
Interfaces - standard
USB 2.0
USB 2.0-Host
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
Interfaces - optional
IEEE 1284/ECP
IEEE 802.11a/b/g/n (Wireless LAN)
USB Device Server
Network protocols - standard
TCP/IP (IPv4, IPv6)
Network protocols - optional
IPX/SPX
Print speed black and white
A4 LEF
38 ppm—single-sided
29 ppm—duplex
First print time
6.5 seconds or less
Printing process
LED array scanning and electrophotographic printing
Print resolution
1,200 x 1,200 dpi
Printer drivers
Standard
PCL 5e, PCL 6, PostScript 3

Optional
XPS
Duplex printing
Standard
Mobile printing
Yes
Non-printable area

4.2 mm—each side

Note: The printable area may vary depending on paper size, printer language, and printer driver settings.

Data Overwrite Security System (DOSS) - Standard
Yes—supported with optional HDD
Encryption
Encryption—HDD, address book, authentication password
Authentication
802.1x wired authentication
User authentication—Windows and LDAP via Kerberos, basic, user code
Wireless LAN security—WEP, WPA2, IEEE 802.11w
WiFi Protected Setup (WPS)
Quota setting
Windows
PCL 5e, PCL 6, and PostScript 3
Windows Vista
Windows Server 2003
Windows Server 2003 R2
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows 7
Windows 8
Windows 8.1

XPS

Windows Vista
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows 7
Windows 8
Windows 8.1
Macintosh
OS X Native v10.6 or later—PostScript 3 only
Unix
Sun Solaris 9, 10
HP-UX 11.x, 11iv2, 11iv3
Red Hat Linux Enterprise v4, v5, v6
SCO Open Server 5.0.7, 6.0
IBM AIX 5L v5.3, v6, v7.1
SAP
Environment—R/3
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS, UPC/EAN
OCR fonts—OCR A, OCR A1, OCR B
Other supported environments
Novell
Netware—6.5 or later

Note: SD card for NetWare option is required to support NetWare.
Supported languages
Operation panel
English, German, French, Italian, Spanish, Dutch, Russian, Swedish, Danish, Portuguese, Norwegian, Czech, Hungarian, Turkish, Polish, Finnish, Catalan, Greek

PCL 5e
English, German, French, Italian, Spanish, Dutch, Russian, Swedish, Danish, Portuguese, Norwegian, Czech, Hungarian, Turkish, Polish, Finnish, Catalan, Simplified Chinese

PCL 6
English, German, French, Italian, Spanish, Dutch, Russian, Swedish, Danish, Portuguese, Norwegian, Czech, Hungarian, Turkish, Polish, Finnish, Catalan, Greek, Brazilian Portuguese, Simplified Chinese

PostScript 3
English, German, French, Italian, Spanish, Dutch, Danish, Norwegian, Swedish, Simplified Chinese

XPS
English, German, French, Italian, Spanish, Dutch, Danish, Norwegian, Swedish

Test page print—configuration map
English, German, French, Italian, Spanish, Dutch, Russian, Swedish, Danish, Portuguese, Norwegian, Czech, Hungarian, Polish, Finnish, Catalan, Greek, Brazilian Portuguese

Test page print—others
English
Standard
Web Image Monitor
Optional
@Remote
Device Software Manager (free)
SmartDeviceMonitor Accounting Report Package
SmartDeviceMonitor for Admin
Mobile apps
Smart Device Print&Scan (Scan not supported)
Power source
220–240 V, 50–60 Hz
Power consumption
1,073 W or less—full configuration
0.57 W—Energy Saver Mode (Sleep Mode)
52 W or less—Low Power Mode
0.15 W or less—ECO Night Sensor
Typical Electricity Consumption (TEC)
2.31 kWh or less
Warm-up time
16.6 seconds or less
Power saving mode
1–240 minutes configurable shift time, default inactive—Low Power Mode
1–240 minutes configurable shift time,  1 minute default——Energy Saver Mode (Sleep Mode)
1, 5, 30, 60, 120 minutes configurable shift time, 120 minutes default—ECO Night Sensor
Recovery time

10 seconds—Low Power Mode
17 seconds—Energy Saver Mode (Sleep Mode)
20 seconds—ECO Night Sensor

Energy saving standards
Energy Star v2.0
Green labels
Blue Angel Mark (BAM), The Thai Green Label Scheme, Energy Efficiency Labelling Scheme (Hong Kong), China ECO mark
Safety standards
EN60950-1 (CE marking) (TUV)
IEC60950-1 (CB)
TR CU certification (EMC)
GB4943 (CCC)
Electromagnetic Compatibility (EMC) standards
EN55022
EN61000-3-2
EN61000-3-3
EN55024 (CE marking)
AS/NZS CSPR22 (C-Tick)
CU-TR
GB9254
GB17625 (CCC)
Identification of plastic components
All plastic components that weigh more than 25 g are identified in accordance with DIN 54840 and ISO 11469 standards
Other environmental features
ECO Night Sensor, Weekly timer
