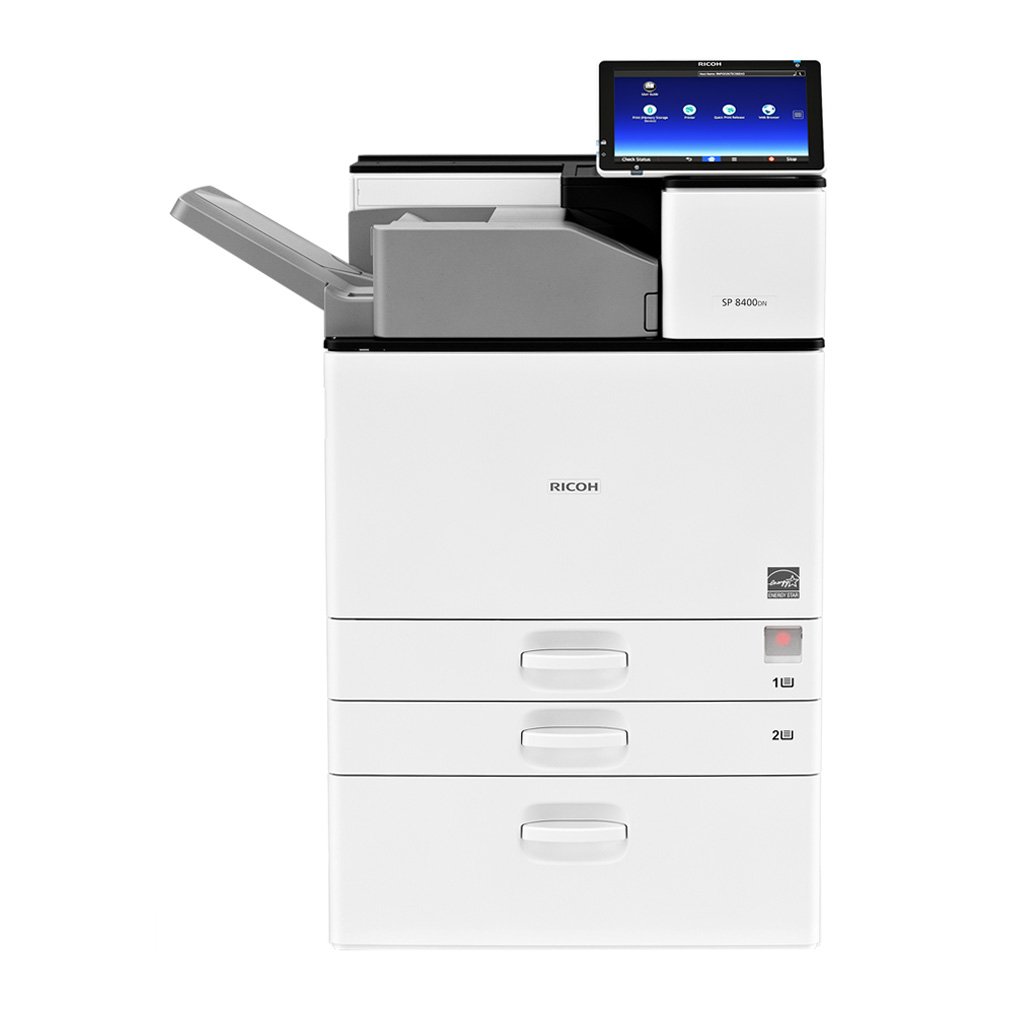

SP 8400DN

A3 black and white printer

  • Produces up to 60 prints per minute
  • First page printed in under 3 seconds
  • Multiple finishing options for versatility
  • Environmentally friendly with low energy use

Versatile printer that can produce postcards and posters in house, saving time and money

When time is critical, you need a printer that can print it all, and fast. The SP 8400DN has the speed and capability to produce documents quickly on all types of media, expanding your capabilities.

Low environmental impact, added flexibility

Save money and produce invoices, mailers, reports, booklets and more in-house, finished and ready to go. Access documents from the easy to use Smart Operation Panel that offers functionality to improve business workflows. Never slow down with an overall printing speed of 60 prints per minute, in a low maintenance machine. High capacity paper trays and double sided printing come standard to keep up with demand.

  1. Simple to use
    Intuitive touchscreen Smart Operation Panel for easy operation.
  2. Environmentally minded
    Lower power consumption with Energy Saver mode, and a quick recovery time.
  3. Advanced security features
    Data encryption, user authentication and optional Hard Disk Overwrite protection keeps information secure.
  4. Versatile media options
    Supports paper sizes up to A3 and stocks up to 300 g/m2.
Download PDF brochure

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • Produces up to 60 prints per minute
  • First page printed in under 3 seconds
  • Multiple finishing options for versatility
  • Environmentally friendly with low energy use

Specifications

Functions
Print
Colour
No
HDD
320 GB—optional
Memory - standard
2 GB
Operation panel
10.1-inch Smart Operation Panel
Standard input capacity (sheets)
1,200
Maximum input capacity (sheets)
4,700
Standard output capacity (sheets)
500
Maximum output capacity (sheets)
4,000
Paper input configuration - optional
550-sheet x 2 paper bank PB3240, 1,000-sheet x 2 LCT PB3260, 1,500-sheet LCT RT3030
Paper output configuration - standard
500-sheet face-down output tray
Supported media
Paper types

Standard trays, optional paper banks
Plain paper 1, plain paper 2, recycle paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, envelope, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4

Bypass tray
Plain paper 1, plain paper 2, recycle paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, envelope, label paper, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4, thin paper

Paper thickness

52–59 g/m²—thin paper
60–74 g/m²—plain paper 1
75–81 g/m²—plain paper 2
82–105 g/m²—middle thick paper
106–169 g/m²—thick paper 1
170–220 g/m²—thick paper 2
221–256 g/m²—thick paper 3
257–300 g/m²—thick paper 4
Maximum paper size
A3
Media weight (g/m2)
52–300
Interfaces - standard
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Host interface Type A x 2
Interfaces - optional
USB 2.0 Type B
IEEE 1284 Type A
IEEE 802.11a/b/g/n
USB device server (additional network interface port)
Network protocols - standard
TCP/IP (IPv4, IPv6)
Print speed black and white
60 ppm
First print time
2.2 seconds or less
Print resolution
1,200 x 1,200 dpi
Page description languages (PDLs)
Standard—PCL 5e, PCL 6 (XL), PostScript 3 emulation, PDF Direct emulation, Media Print (JPEG/TIFF), PJL
Optional—IPDS, XPS, Genuine Adobe PostScript 3, PDF Direct from Adobe
Printer drivers
Standard
PCL 5e, PCL 6 (XL), PostScript 3 emulation, XPS

Note: XPS driver can be downloaded from Ricoh website.
Duplex printing
Standard
Mobile printing
Yes
Data Overwrite Security System (DOSS) - Standard
Yes
Encryption
Encryption—HDD, address book, authentication password
Authentication
User authentication—Windows and LDAP via Kerberos, basic, user code
802.1x wired authentication
WiFi Protected Setup (WPS)
Wireless LAN security—IEEE 802.11i, IEEE 802.11w, WEP, WPA
Quota setting
Windows
Windows Vista
Windows 7
Windows 8.1
Windows 10
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Macintosh
OS X Native v10.9 or later—PostScript 3 emulation only
Unix
Sun Solaris—9, 10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—v5.0.7, v6.0
IBM AIX—v5.3, v6.1, v7.1
SAP
Environment—R/3, S/4
SAP R/3 Device Type—supported
Barcode fonts—Code 128, Code 39, Code 93, Codabar, MSI, USPS, POSTNET, UPC/EAN
OCR fonts—OCR A, OCR B
Standard
Web Image Monitor
Optional
Device Manager NX
Printer Driver Packager NX
Streamline NX
Card Authentication Package
Enhanced Locked Print
Mobile apps
Smart Device Connector
Smart Device Print&Scan
Power source
220–240 V, 50–60 Hz
Power consumption
1,780 W or less—maximum power
825.1 W—operating power
43.4 W—Ready Mode
0.89 W—Energy Saver Mode (Sleep Mode)
15 W or less—1,000-sheet LCT PB3260
13 W or less—1,500-sheet LCT RT3030
35.4 W or less—1,000-sheet hybrid finisher SR3210
67 W or less—3,000-sheet finisher SR3230
15 W or less—Output jogger Type M25
12 W—Bridge unit BU3070
Typical Electricity Consumption (TEC)
2.7 kWh
Warm-up time
21 seconds or less
Power saving mode
1 minute default—Auto switch—Energy Saver Mode (Sleep Mode)
Recovery time
7 seconds—Energy Saver Mode (Sleep Mode)
Environmental standards
Restriction of Hazardous Substances (RoHS)
WEEE
EPEAT (Gold)
Green labels
BAM, Thai Green Label—target
