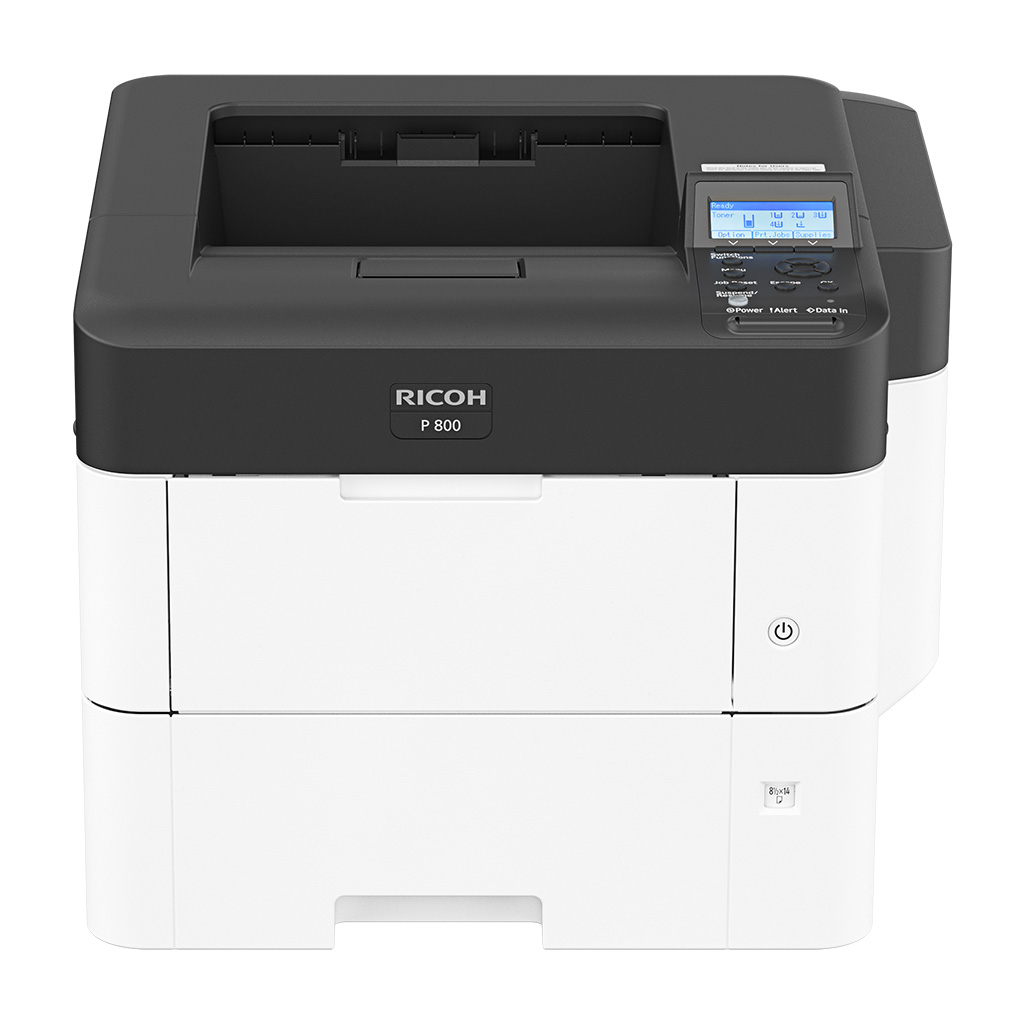

P 800

A4 black and white printer

  • Prints up to 55 ppm
  • 10,000-sheet starter toner
  • Mobile printing
  • Max 2,600-sheet input

Value speed and volume in your workflows

Print black-and-white output at 55 pages per minute (ppm). Maximum input capacity of 2,600 sheets, using the four optional paper feed units, makes it ideal for any large office print jobs with notable low Typical Electricity Consumption (TEC) values that make it affordable to operate in the long run.

Workflow enhancements

Users will be able to seamlessly connect to the printers via a suite of connectivity options, including Mopria and AirPrint for mobile printing from Android and Apple devices, respectively.  The printers are also Google Cloud Print-ready, which allows users to print directly to the devices over the cloud without having to install printer drivers on their computing or mobile device. This eliminates the need to buy, deploy, and manage additional hardware and software.

Print with confidence

Intuitive feature navigation is provided by a 4-line LCD panel while PostScript 3 and PDF Direct emulation as standard allows users to produce professional documents accurately out of the box.

  1. Excellent performance
    Print fast on the go with enhancements to support increased demand
  2. Reliable and durable
    Stable and uninterrupted performance
  3. Smart connectivity
    Meet the needs of the mobile workforce
  4. Quality output
    Crisp and clear 1,200 x 1,200 dpi output

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • Prints up to 55 ppm
  • 10,000-sheet starter toner
  • Mobile printing
  • Max 2,600-sheet input

Specifications

Functions
Print
HDD
320 GB—optional
Memory - standard
2 GB
Operation panel
4-line LCD
Physical dimensions (W x D x H)—mainframe
420 x 410 x 346 mm
Physical dimensions (W x D x H)—other
380 x 410 x 121 mm—Paper Feed Unit PB1160
778 x 808 x 64 mm—Caster Table Type M40 with anti-tipper
380 x 410 x 64 mm—Caster Table Type M40 without anti-tipper
Weight—mainframe
18 kg or less
Weight—other
4 kg or less—Paper Feed Unit PB1160
11 kg or less—Caster Table Type M40
Standard input capacity (sheets)
600
Maximum input capacity (sheets)
2,600
Standard output capacity (sheets)
500
Maximum output capacity (sheets)
500
Supported media
Standard tray, duplex unit
Plain Paper 1–2, Middle Thick Paper, Thick Paper 11, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper

Bypass tray

Thin Paper, Plain Paper 1–2, Middle Thick Paper, Thick Paper 1–3, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, OHP, Label Paper, Envelope

Paper Feed Unit PB1160

Plain Paper 1–2, Middle Thick Paper, Thick Paper 11, Recycled Paper, Coloured Paper, Special paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, Envelope

1—Allowed weights for Trays 1–5 and duplex printing are 106–120 g/m2
Paper thickness

60–63 g/m2—Thin Paper
64–74 g/m2—Plain Paper 1
75–90 g/m2—Plain Paper 2
91–105 g/m2—Middle Thick Paper
106–135 g/m2—Thick Paper 1
136–170 g/m2—Thick Paper 2
171–220 g/m2—Thick Paper 3, Envelopes

Maximum paper size
A4
Media weight (g/m2)
60–220
Interfaces - standard

10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB Device 2.0
USB Host Type A (2 ports)
NFC tag

Interfaces - optional
IEEE 1284
Wireless LAN (IEEE 802.11a/b/g/n)
Device Server Type M37 (additional NIC port)
Network protocols - standard
TCP/IP (IPv4, IPv6)
Print speed black and white
55 ppm
First print time
6 seconds or less
Printing process

Dry electrostatic transfer system with laser exposure method

One-component jumping development system

Print resolution
1,200 x 1,200 dpi (1-bit)
Page description languages (PDLs)

Standard
PCL 5e, PCL 6 (XL), PostScript3 emulation, PDF Direct emulation

Optional
Adobe PostScript 3, Adobe PDF Direct, IPDS, XPS

Note: IPDS unit will be available after product launch.

Printer drivers

Standard
PCL 5e, PCL 6 (XL), PostScript3

Optional
Adobe PostScript 3

Duplex printing
Standard
Mobile printing
AirPrint, Mopria, Google Cloud Print, RICOH Smart Device Connector
Non-printable area

4 mm each side

Maximum printable area
216 x 356 mm
Data Overwrite Security System (DOSS) - Standard
With optional HDD
Encryption
HDD encryption
Authentication password
S/MIME
Authentication

802.1x wired authentication
IEEE 802.11i security (WPA)
Quota setting/Account limit
User authentication—Windows and LDAP via Kerberos, basic
User code authentication—8 digits, 1,000 user codes
WiFi Protected Setup (WPS) support

Windows
Windows 7
Windows Server 2008
Windows Server 2008 R2
Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2016
Windows Server 2019
Macintosh
OS X Native v10.11 or later—PostScript 3 only
Unix
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2
SAP
Environment—R/3, R/4
SAP R/3 Device Type—supported
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS, UPC/EAN
OCR fonts—OCR A, OCR B
Supported languages

Operation panel
English, French, Spanish, Brazilian Portuguese, German, Italian, Dutch, Russian, Swedish, Danish, Portuguese, Norwegian, Czech, Hungarian, Turkish, Polish, Finnish, Catalan, Greek, Thai

PCL 5e
1. English, 2. German, 3. French, 4. Italian, 5. Spanish, 6. Dutch, 7. Russian, 8. Swedish, 9. Danish, 10. Portuguese, 11. Norwegian, 12. Czech, 13. Hungarian, 14. Turkish, 15. Polish, 16. Finnish, 17. Catalan, 18. Greek, 19. Brazilian Portuguese, 20. Korean, 21. Simplified Chinese, 22. Traditional Chinese, 23. Japanese

PCL 6
1. English, 2. German, 3. French, 4. Italian, 5. Spanish, 6. Dutch, 7. Russian, 8. Swedish, 9. Danish, 10. Portuguese, 11. Norwegian, 12. Czech, 13. Hungarian, 14. Turkish, 15. Polish, 16. Finnish, 17. Catalan, 18. Greek, 19. Brazilian Portuguese, 20. Simplified Chinese

PostScript 3
1. English, 2. German, 3. French, 4. Italian, 5. Spanish, 6. Dutch, 7. Russian, 8. Swedish, 9. Danish, 10. Simplified Chinese

Test page print—config map
1.English, 2. Thai

Others
English

Standard
@Remote Embedded
Web Image Monitor
Optional

@Remote Office
@Remote Enterprise Pro
@Remote Connector NX
Card Authentication Package
Device Software Manager
Enhanced Locked Print NX
GlobalScan NX
Java SDK
Printer Driver Packager NX
RICOH Streamline NX

Mobile apps
RICOH Smart Device Connector
Power source
220–240 V, 50/60 Hz
Power consumption
1,240 W or less—maximum operating power (nominal)
1,400 W or less—maximum operating power (guaranteed)
716 W—printing, operating (nominal)
68 W or less—Ready Mode (nominal)
2.9 W—Energy Saver Mode (Sleep Mode) (nominal)
Typical Electricity Consumption (TEC)
2.7 kWh
Warm-up time
25.4 seconds or less
Recovery time
10 seconds or less—from Ready Mode
24 seconds or less—from Energy Saver Mode (Sleep Mode)
Green labels
Blue Angel Mark (BAM), Energy Efficiency Labelling Scheme (Hong Kong), Thai Green Label
Safety standards
EN60950-1
IEC60950-1
AS/NZS60950
EAC
Restriction of Hazardous Substances (RoHS)
Electromagnetic Compatibility (EMC) standards
EN55032
EN55024
EN61000-3-2
EN61000-3-3
AS/NZS CISPR32
EAC
Identification of plastic components
All plastic components that weigh more than 25 g are identified in accordance with DIN 54840 and ISO 11469 standards.
