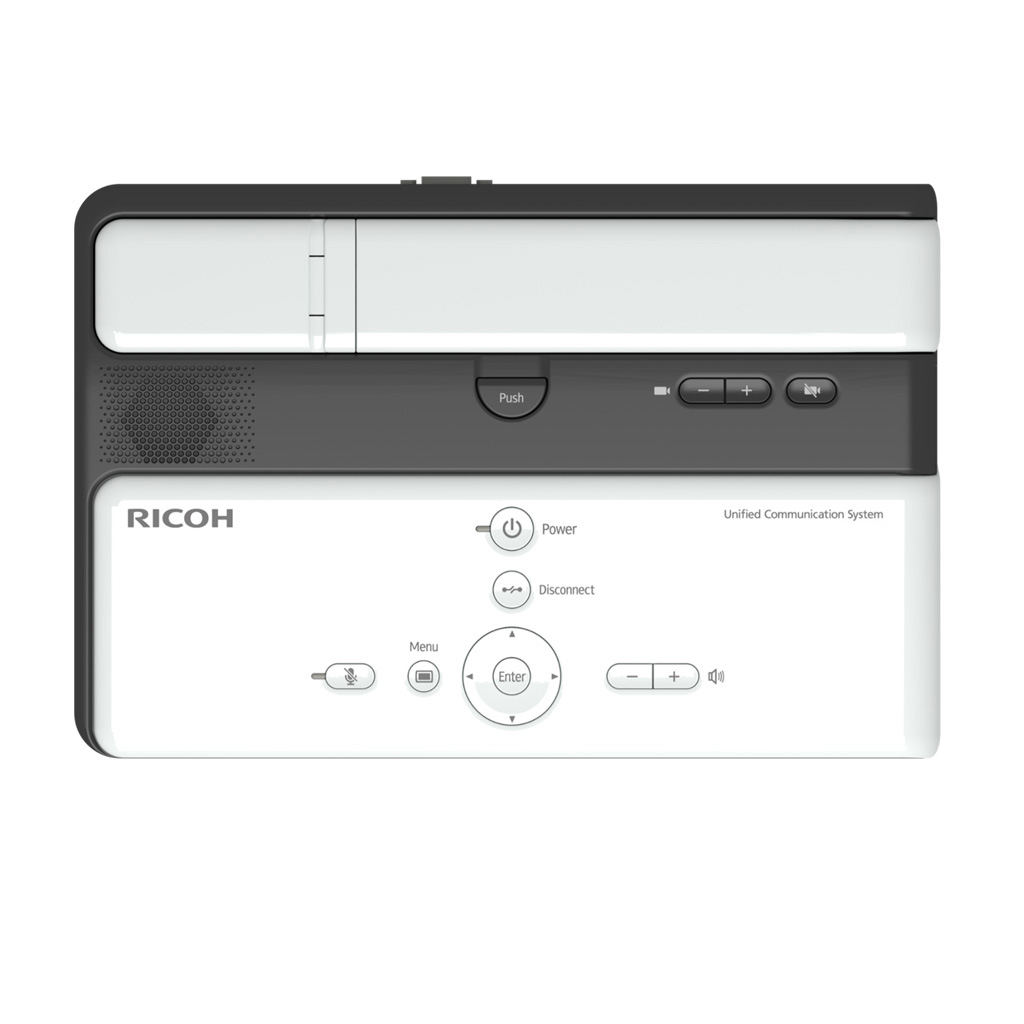

UCS P3500M

Portable video conferencing system

  • 60-second start-up time
  • 1,280 x 800 pixels video
  • Max 50 multipoints
  • Supports UCS Advanced

Video conferencing equipment lets people see what you have to say

Expand your audience. Use the UCS P3500M Unified Communication System to share your message virtually with audiences in locations across the globe. The cloud-based endpoint system is WebRTC compatible, so participants can join the meeting using their own browser-based videoconferencing system - without investing in new hardware, utilities or plug-ins.

  1. Online meetings expand your audience, not your budget
    Because web conferencing is browser-based, participants are free to join the meeting from anywhere - including conference rooms, home offices or even coffee shops. Connect groups of participants in remote locations and communicate like everyone was in the same room.
  2. Portable videoconferencing equipment sets up a meeting on the spot
    Stay in touch, even when on the move. Avoid juggling schedules while you wait for video conferencing room availability in your office. Pack the integrated camera, microphone and speakers into the compact, laptop-sized case and carry the portable UCS P3500M video conferencing equipment with you to turn any location into your own video conference room.
  3. Keep your audience engaged
    See your visuals clearly on any screen with up to 1280 x 800 dpi resolution and an output rate of 30 frames per second, for smoother action with less lag. With the 125-degree camera angle, nearly everybody in the room is visible. Use the zoom option to focus in on individual speakers. The high-quality microphone minimizes distractions by masking most non-stationary noises, including the tapping of pens and keyboards. Take advantage of dynamic media control to adjust images automatically and eliminate interruptions when your bandwidth is low.
  4. Deliver more information more ways
    Use a wide range of our devices to enhance your next meeting. Pair the UCS P3500M with a Ricoh Interactive Whiteboard to share meeting notes in real time. Or, use a Ricoh Projection System to showcase a presentation for the entire group

Make an immediate connection with a wider audience

Share information with multiple groups, multiple ways. When you have a lot of information. Pair the UCS P3500M with other Ricoh systems to share it in the formats your audience prefers. Want to take notes during the meeting? Use the UCS with a Ricoh Interactive Whiteboard and zoom in on key information for your viewing audience. Need to share a video or diagram? Project it on the wall with a Ricoh Projection System and use the UCS P3500M camera to let remote attendees see it for themselves. Or, you can have participants access documents and presentations discussed during the meeting on their PC or Mac. Each innovative system is designed specifically to simplify the way you move information, so key decision-makers can make faster, more informed decisions.



Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • 60-second start-up time
  • 1,280 x 800 pixels video
  • Max 50 multipoints
  • Supports UCS Advanced

Specifications

Operation panel

LED lights
Blue power light
Lit—power on
Off—power off
Flashing—device booting

Blue microphone light
Flashing—mute on
Off—mute off

Alerts
No LED light

LED lights
Blue power light
Lit—power on
Off—power off
Flashing—device booting

Blue microphone light
Flashing—mute on
Off—mute off

Alerts
No LED light

LED lights
Blue power light
Lit—power on
Off—power off
Flashing—device booting

Blue microphone light
Flashing—mute on
Off—mute off

Alerts
No LED light

What's included

AC adaptor
Yes

Power cord
Yes (EU type)

UCS cable for PC document sharing
Yes

Wireless remote controller (infrared)
Yes

Product instructions
Read this first information
Getting started manual
Quick guide
Setup guide
Operating instructions
Connecting to Ricoh UCS Advanced Service

End User Licence Agreement (EULA)
Yes

McAfee EULA
Yes

Carry bag
Yes

Physical dimensions (W x D x H)—other
285 x 189 x 40 mm—excluding protrusions, stored camera
Weight—other
1.6 kg—without AC adaptor, AC power cord, USB cable, and carry bag
2.3 kg—with AC adaptor, AC power cord, and USB cable
2.8 kg—with AC adaptor, AC power cord, USB cable, and carry bag

Note: The weight doesn't include the instructions manuals.
Audio

Audio input
Built-in microphone x 1
Omnidirectional
2.0 m, 360 ° microphone pick up range—non-partitioned space
4.0 m, 360 ° microphone pick up range—enclosed rooms, for example, 5.5 ×  3.5 × 2.5 m (W x D x H)

Microphone mute
Available

Adaptive echo cancellation
Available

Noise reduction
Available

Auto gain control
Available

Non-stationary sound cancellation
Available

Bandwidth
300 Hz –11,000 Hz

Audio connector
Pin Jack (3.5 mm audio) x 1 for external microphone, headphones, and audio devices

Audio output
Built-in speaker x 1
Mono

Volume adjustment
Maximum volume 63 dB SPL (1 m)

Bandwidth
300 Hz–11,000 Hz

Audio connector
Pin Jack (3.5 mm audio) x 1 for external speaker

Video

Video encoding
H.264/SVC (H.264/AVC Annex G)

Video output
RGB (D-sub 15-pin) x 1/HDMI (Type A) x 1

Note: No HDMI certification. Because the HDMI port on the UCS P3500M is specialised for video use only, these HDMI functions are not available—audio input/output, High-bandwidth Digital Content Protection (HDCP), Consumer Electronics Control (CEC), HDMI Ethernet Channel (HEC), Audio Return Channel (ARC), x.v.Color, Deep Color, 3D

Video resolution (display or projector image output)
RGB
XGA (1,024 × 768 pixels)
WXGA (1,280 × 800 pixels)

HDMI
HD (1,280 × 720 pixels)—except for Ricoh projectors
XGA (1,024 × 768 pixels)
WXGA (1,280 × 800 pixels)—Ricoh projectors only

Aspect ratio
16:9

Camera

Type
Built-in camera x 1

Pixels
2.0 Mega pixels

View angle
Horizontal 125° / vertical 70°

Zoom
4x digital zoom

Focusing
Focus position 45 cm
Auto gain adjustment
Auto white balance adjustment
Horizontally and vertically adjustable

Camera arm
135° forward from the stored state

Camera head
Vertical up 45°/ down 45°
Horizontal clockwise 90°/ counter clockwise 180°

Camera off
Supported

Multipoint meeting settings

Maximum number of multipoints
50

Maximum number of simultaneous displays
9

Interfaces - standard

External connectors
3.5 mm Jack x 2
For connecting an external analog speaker, microphone, or headset

USB 3.0 Type A x 2
For connecting an external digital speaker, microphone, or headset

Note: When an external speaker or microphone is connected, the internal speaker microphone is disabled.
Multiple external speaker microphones cannot be connected. Video input is available by connecting a camera. When an external camera is connected using an HDMI port, the USB port is disabled.

USB 3.0 Micro Type B x 1

For connecting a PC or Mac for screen sharing

HDMI  Type A x 1
For connecting an external high definition (HD) camera—specialised for video use only; no other HDMI functions available

Security lock slot x 1
A slot x 1 (3.6 x 7.6 mm square hole) for connecting a Kensington lock

Network connectivity
Wired LAN
10Base-T,100Base-TX, 1000Base-T (Gigabit Ethernet)

Wireless LAN
IEEE802.11a/b/g/n

Windows

PC screen sharing and system requirements
Image output
800 x 600 pixels–1,440 x 900 pixels, maximum 5 fps

Display
1,024 x 768 dots or more, 64,000 colors or more recommended

Windows OS
32-bit
Windows Vista Home Basic/Home Premium/Business/Enterprise/Ultimate SP2
Windows 7 Home Premium/Professional/Enterprise/Ultimate SP1
Windows 8 Core/Pro/Enterprise
Windows 8.1 Core/Pro/Enterprise

64-bit
Windows Vista Home Basic/Home Premium/Business/Enterprise/Ultimate SP2
Windows 7 Home Premium/Professional/Enterprise/Ultimate SP1
Windows 8 Core/Pro/Enterprise
Windows 8.1 Core/Pro/Enterprise
Windows 10 Home/Pro/Enterprise

CPU
Core 2 Duo 2.0 GHz or more

Memory
1 GB or more

HDD
Program areas 100 MB or more

Macintosh
Mac OS 10.7, 10.8, 10.9, 10.10, 10.11—PC screen sharing and system requirements
Other supported environments

Ricoh's cloud-based UCS service platform
Cloud service
RICOH UCS Advanced Service by Videxio

Supported video conferencing protocols
H.323
SIP

Supported cloud-based conferencing services
Skype
Skype for Business
YouTube Live

Virtual Meeting Room (VMR) service
Available

Supported operating systems
Windows
Mac
iOS and Android

Points of Presence (PoP)
18, of which 14 are operational data centres
Smart routing to the closest PoP available
Network heartbeat to the endpoint available, every 15 minutes

Browser support
Web Real-Time Communications (WebRTC)
Compatible with the latest WebRTC-supported versions of Chrome, Firefox, and Opera (no plug-in required), as well as the latest versions of Internet Explorer and Safari (plug-in required)

Mobile device support
Yes

Phone dial in support
Yes

Data sharing
Yes

Group text chat
Not supported

Maximum number of participants in VMR
50—participants can join from their computer, tablet, smartphone, landline, conference room, or UCS P3500M

Supported languages
User interface languages
English, French, German, Italian, Spanish, Dutch, Swedish, Brazilian Portuguese, Simplified Chinese, Traditional Chinese
Power source
AC 100–240 V, 50-60 Hz, 1.5 A
Power consumption
57 W or less—when not connected to USB
66 W or less—when connected to USB
0.5 W or less—standby
Startup time
60 seconds or less
Environmental standards
Restriction of Hazardous Substances (RoHS)
REACH regulation
Erp (EuP) Lot 6
Erp (EuP) Lot 7
Directive 2006/66/EC
Directive 2005/20/EC
WEEE
SAA (MEPS) (4665)
Safety standards
EN60950-1 (CE Marking, UL-EU)
IEC60950-1 (CB attestation)
CNS14336 (RPC)
Electromagnetic Compatibility (EMC) standards
EN55022
EN61000-3-2
EN61000-3-3
EN55024 (CE Marking)
EN62311 (CE Marking)
AS/NZS CISPR 22 (RCM)
CNS 13438 (RPC)
Wireless LAN standards
EN300 328 (CE Marking)
EN301 489-1
EN301 489-17 (CE Marking)
NCC Certificate
AS/NZS 4268 (RCM)
EN300328
EN301893
Operating environment

Temperature
10–32º C—operating
0–43º C—non-operating temperature
-20–60º C—transportation and storage (packaged)

Humidity
15–80% (non-condensing)—operating
10–90% (non-condensing)—non-operating humidity
5–80%—transportation and storage (packaged)

Maximum altitude
3,048 m

Power on duration
After 15 minutes of inactivity on the contact list screen; default setting
