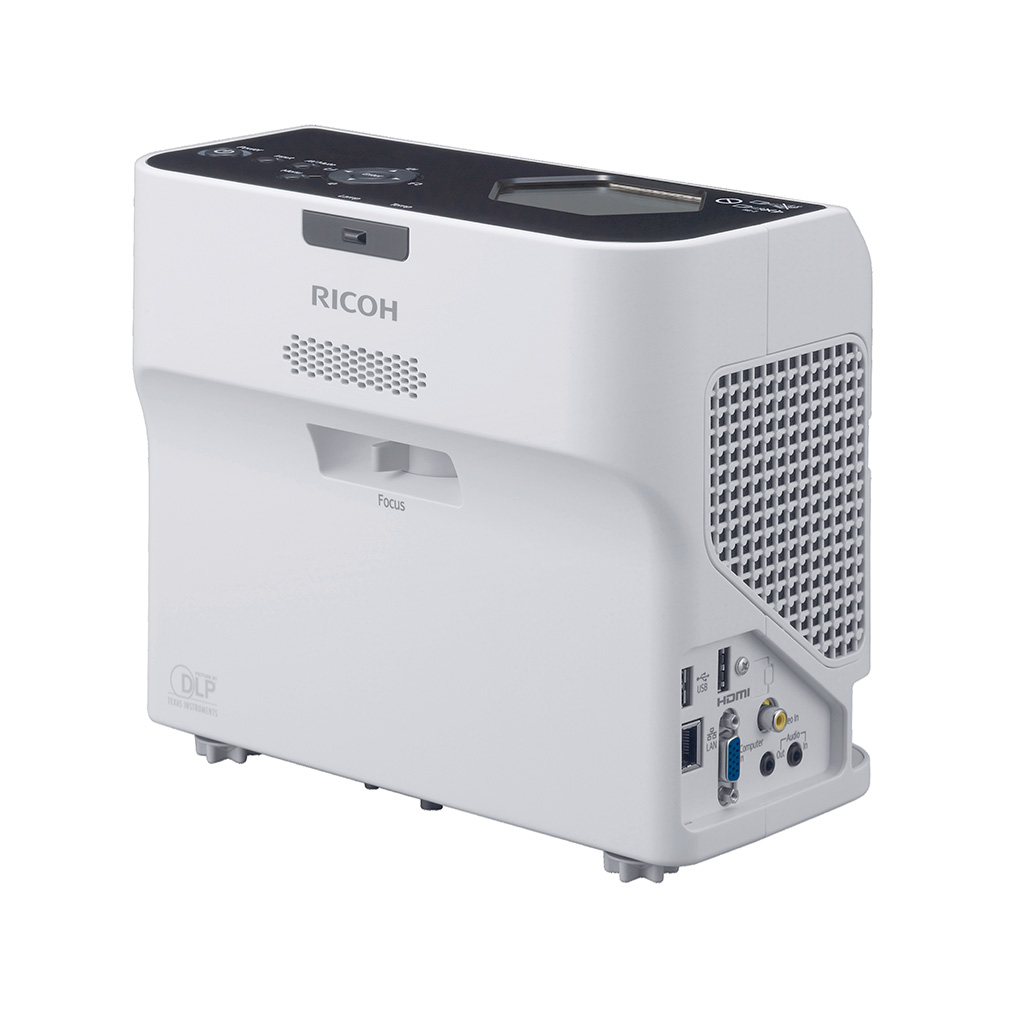

PJ WX4152NI

3,500-lumen ultra-short throw projector

  • WXGA Resolution (1280x800)
  • Brightness rating of 3,500 lumens
  • Screen size up to 80 inches
  • Interactive projector

Present confidently, in any space, with portable projection

Make your message clear with ultra short throw projection that’s compact in size. The PJ WX4152NI works with most distance and size limitations, and is ideal for video conferencing.

  1. Widescreen projection from short distances
    Place the ultra-short throw projector inches from a projection surface and display crisp, compelling media – without compromising quality
  2. Brilliant display
    WXGA wide format resolution and high contrast ratio of 13,000:1 deliver vivid projection
  3. Share information anywhere
    Project on the ceiling or floor with 360‑degree projection that allows you to project at any angle
  4. Make your presentations interactive
    Add annotations and highlight details on the projected surface via an incredibly accurate wireless digital pen

Ultra short throw, quick start

Meeting rooms, classrooms, floors and even table tops can become theatres with a projection of up to 80 inches diagonally. Add annotations and highlight details to the screen with the wireless digital pen. Participants can share document and images directly from laptops and mobile devices via wireless connections and LAN. Just plug in and the projector will automatically find available networks for easy startup.


Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • WXGA Resolution (1280x800)
  • Brightness rating of 3,500 lumens
  • Screen size up to 80 inches
  • Interactive projector

Specifications

Projector type
Ultra short-throw
What's included

Wall mounting screw
Available

Cables
RGB cable
Power cable

Conversion adaptor
Not available

Carrier bag
Standard

Remote control
Standard

Battery for remote control
Included

CD-ROM content
Operating instructions
JPEG conversion software
Network utility software
Projector management utility software and manual
Interactive drawing software

Physical dimensions (W x D x H)—other
257 x 144 x 221 mm
Weight—other
3 kg
Projection system
DLP
Panel size
0.65 inches
Contrast
2,000:1—with lamp power control off
13,000:1—with lamp power control on
Aspect ratio
16:9
Brightness
3,500 lumens
Resolution
1,280 x 800 (WXGA)
Lamp type
High-pressure mercury lamp
Lamp wattage
250 W—Standard Mode
150 W—Eco Mode
Lamp life
3,500 hours—Standard Mode
5,000 hours—Eco Mode
Lens type
Mirror-type
Zoom type
Digital zoom
Zoom ratio
80–100%
Focus method
Manual
Magnification
100%, 125%, 150%, 175%, 200%
Colour reproduction
1,073,000,000 colours—10-bit
16,770,000 colours—8-bit (USB/Network)
Projection size
48–80 inches
Projection distance
From optical outlet to projection surface
18.8 cm for 48 inches display
23.5 cm for 60 inches display
31.7 cm for 80 inches display
Keystone correction
Automatic
Projector modes
Standard, Rear, Ceiling, Rear ceiling, Tabletop

Note: Refer to your local sales company for the tabletop attachment.
Input signals
Computer IN
VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA—RGB signal
480i, 480p, 576i, 576p, 720p, 1081i, 1080p—colour difference signal

Video IN
NTSC, PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, PAL-60, BW50/60Hz
3D support
Blu-ray, DLP Link
Control system
AMX, Crestron Roomview, UPnP, Wi-Fi
Speaker
2 W, mono
Other supported features
Mute (blank), freeze, Blackboard Mode, User logo, Closed captioning, Colour Universal Design, Simple DICOM, Miracast, Sound Mode—selectable from Standard, Narration, and Music modes, Miracast
Interfaces - standard

Computer 1 input terminal
Mini D-SUB 15 pin x 1

Computer 2 monitor output terminal
Not available

S-video terminal
Not available

Video terminal
RCA 1-pin x 1

Audio input terminal
Mini jack x 1

Audio output terminal
Mini jack x 1

Control terminal (for service)
USB Type-minB x 1 (RS-232C)

Digital terminal
HDMI x 1

Simple DICOM compatible
Cannot be used for the display of medical diagnostic images

USB
Type-A x 1
USB 2.0 high-speed
DC + 5 V, 500 mA

Wired LAN
RJ-45 x 1 (10Base-T/100Base-Tx/1000Base-T compliant)

Wireless LAN
IEEE 802.11b/g/n compliant
Communication modes—ad hoc (5 GHz is not supported), infrastructure
Network authentication—none, Open system, Common key, WPA-PSK, WPA2-PSK, WPA-EAP, WPA2-EAP
Network encryption—none, WEP, TKIP, CCMP (AES)

Other connectivity features
Multi screen—from single PC to four projectors; available with QuickProjection software
4 in 1—discussion modeavailable with QuickProjection software
Ricoh PJ Interactive Software, Type 2—requires USB adapter for PC
PJ Link—version 1.0, Class 1 compliant
Projector management—available with Projector Management Utility software
Remote whiteboard sharing—supported as standard with Interactive White Board (IWB)
Simple DICOM compatible—cannot be used for the display of images for medical diagnosis
Smart Presenter—with ad hoc connections
Still image projection from DLNA devices—JPEG
Simultaneous LAN and Wireless LAN connectivity
Interactive-ready

Network projection
Available with QuickProjection application, or other third-party projection software

Note:
Network projection is not recommended when used in combination with IWB—as performance is likely to be unsatisfactory.

Web Image Monitor
Configuration via web browser
Windows Internet Explorer, 32- and 64-bit—8.0, 9.0, 10.0, 11.0
Windows Edge with Windows 10 only

Note: Windows IE not supported by Windows RT.

PENTAX-Ricoh camera projection
Supported—for microscope projection
Requires USB connection
File format—JPEG only
Supported models—K-50/K-3, GXR GR LENS A12 50 mm and 28 mm, Q-S1, K-3 II, WG5-GPS, WG-30, G800, K-S1, K-S2, GR, GR2

Present direct from USB device (PC-free presentation)
Compatible format for USB memory—JPEG (baseline), MPEG2, H.264 AVC
File extension for USB memory—jpg, JPG, jpeg, JPEG, mpg, MPG, mpeg, MPEG, m2ts, M2TS, m2t, M2T, m2p, mp4, mov

Note: Progressive JPEG is not supported.

Maximum resolution—JPEG
26,214,400 pixels—horizontal x vertical
5,120 pixels—horizontal
5,120 pixels—vertical

Maximum resolution—MPEG2
1,920 x 1,080 pixels—horizontal x vertical
30 fps—frame rate

Still image projection with DLNA server
Supported
Still image format—JPEG only

Password protection of device
Yes
Encryption
Wireless LAN network encryption
None, WEP, TKIP, CCMP (AES)
Authentication
Wireless LAN network authentication
None, open system, common key, WPA-PSK, WPA2-PSK, WPA-EAP, WPA2-EAP
Windows

JPEG conversion software
Windows Vista SP2, 32- and 64-bit—Ultimate, Business, Home Premium, and Home Basic editions
Windows 7 SP1, 32- and 64-bit—Ultimate, Enterprise, Professional, and Home Premium editions
Windows 8, Windows 8.1, 32- and 64-bit—Pro and Enterprise editions
Windows 10

Network Utility software (QuickProjection)
Windows Vista SP2 or later, 32- and 64-bit—Ultimate, Business, Home Premium, and Home Basic editions
Windows 7 SP1, 32- and 64-bit—Ultimate, Enterprise, Professional, and Home Premium editions
Windows 8, Windows 8.1, 32- and 64-bit—Pro and Enterprise editions
Windows 10

Projector Management Utility
Windows Vista SP2 or later, 32- and 64-bit—Ultimate, Business, Home Premium, and Home Basic editions
Windows 7 SP1, 32- and 64-bit—Ultimate, Enterprise, Professional, and Home Premium editions
Windows Server 2008 SP2, 32- and 64-bit
Windows Server 2008R2 SP1, 64-bit—Standard edition
Windows 8, Windows 8.1, 32- and 64-bit—Pro and Enterprise editions
Windows 10

Interactive drawing software
Windows 7 SP1 or later, 32- and 64-bit—Ultimate, Enterprise, Professional, Home Premium editions
Windows 8, Windows 8.1, 32- and 64-bit—Pro and Enterprise editions
Windows 10

Macintosh
Network Utility software (QuickProjection)—Mac OS X—v10.8–10.10
Other supported environments
Miracast supported devices
Nexus 5 with Android 4.4 and 5.0
Nexus 7 with Android 4.4
Galaxy S6 with Android 5.0
Xperia Z4 with Android 5.0
Galaxy Tab S8.4 with Android 4.4
Windows Surface 2 with Windows RT 8.1
Windows Surface Pro 3 with Windows 8.1 Pro
Windows Surface 3 with Windows 8.1, 10

Note: Galaxy S6 supported from March 2016.
Supported languages

Menu languages
In 19 languages—Japanese, English, French, German, Italian, Spanish, Portuguese, Russian, Swedish, Turkish, Polish, Norwegian, Romanian, Danish, Dutch, Thai, Arabic, Traditional Chinese, Indonesian

Paper-based safety instructions and quick reference guide
In 5 languages—English, German, French, Italian, Spanish

Web Image Monitor
In 8 languages—English, French, German, Italian, Spanish, Dutch, Simplified Chinese, Japanese

Operating instructions
In 2 languages—English, Japanese

Note: User manual in 16 languages is available for download from the Ricoh website—English, German, French, Italian, Spanish, Dutch, Swedish, Norwegian, Polish, Russian, Portuguese, Danish, Traditional Chinese, Turkish, Thai, Japanese

JPEG conversion software
In 8 languages—English, German, French, Italian, Spanish, Dutch, Simplified Chinese, Japanese

Network utility software
In 8 languages—English, German, French, Italian, Spanish, Dutch, Simplified Chinese, Japanese

Projector management utility software and manual
In 2 languages—English, Japanese

Interactive drawing software
In 12 languages—English, German, French, Italian, Spanish, Dutch, Brazilian Portuguese, Russian, Swedish, Polish, Simplified Chinese, Japanese

Replacement air filter
User manual in 20 languages—English, German, French, Italian, Spanish, Dutch, Swedish, Finnish, Norwegian, Polish, Russian, Hungarian, Portuguese, Czech, Danish, Traditional Chinese, Japanese, Simplified Chinese, Thai, Turkish

High contrast screen
User manual available in 2 languages—English, Japanese

Standard

Web Image Monitor
Configuration via web browser

JPEG conversion software
CPU—Core2 Duo, 2 GHz or more
Memory—2 GB or more
HDD/SSD space—1 GB or more

Network Utility software (QuickProjection)
A software application that provides network connectivity to Wired or Wireless LAN
Compliant to PJLink Class 1
CPU—Core2 Duo, 2 GHz or more
Memory—2 GB or more
HDD/SSD space—1 GB or more

Projector Management Utility
A software application for projectors that is fully compliant to PJLink Class 1 standard
Enables the use of the projector without a video cable, via Wired or Wireless LAN
Users can save multiple wireless network profiles in the utility, then select the profile that is relevant to their current location. Up to 100 networked projectors from different manufacturers can be controlled and monitored from one PC, as long as they are all PJLink Class 1 compliant.
CPU—1 GHz or more
Memory—512 MB or more
Image/animation via Ethernet or Wireless LAN

Ricoh Smart Presenter
Free software for projectors available for download from AppStore/iTunes website. Allows users to conduct meetings and presentations using Apple iPad, iPad2, and New iPad via 3D or Wireless LAN, and the OS version of iPad iOS 5.1 or later. To be able to display a PDF file stored on the iPad, the projector and the iPad have to be connected under the same broadband domain.

Ricoh Smart Device Connector
Free software for Apple iOS and Google Android smart devices that allows users to share images directly to a Ricoh projector. Users can connect to the projector wirelessly using a QR Code, entering a four-digit number, or entering an IP address.

Note: QR Code will be available on the projector from April 2016 via a firmware upgrade.

Drawing software
Available in 12 languages—English, German, French, Italian, Spanish, Dutch, Brazilian Portuguese, Russian, Swedish, Polish, Simplified Chinese, Japanese

Remote Whiteboard Sharing
Enables interactive communications in a remotely connected environment with activated remote license to connect up to four devices, inluding projectors, Ricoh Interactive Whiteboard (IWB), and Unified Communication Sytems (UCS). Suitable for inter‑branch communications within enterprise, lecture hall, academic conferences, community halls, and more.

Interactive kit
Includes a digital PointBlank pen, module for PC, chargeable battery, CD-ROM (drawing software), user manual, and a USB cable. PointBlank is interactive display technology developed by Texas Instruments. PointBlank technology enables users to make any surface interactive, without the need for a special board. Equipped with a pen that contains a camera and a sensor, this technology is easy to use, and it allows the user to write on any display surface.

Power source
100–240 V, 50/60 Hz
Power consumption
313 W or less—Standard Mode
208 W or less—Eco Mode
1.4 W—Standby Mode, Wired LAN
1.8 W—Standby Mode, Wired LAN + Wireless LAN
0.3 W—Standby Mode
Environmental standards
Restriction of Hazardous Substances (RoHS)
REACH
EuP (Lot 6, Lot 19)
Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators
Directive 2005/20/EC of the European Parliament and of the Council of 9 March 2005
WEEE
Safety standards
EN60950-1 (CE Marking, TUV Mark)
EN60950-1 (CB attestation, PSB)
Electromagnetic Compatibility (EMC) standards
EN55022
EN55024 (CE Marking)
EN61000-3-2
EN61000-3-3
AS/NZS CISPR 22 (C-Tick)
HKG (EMC)
Wireless LAN standards
Wireless radio standards
EN300328 (CE Marking)
EN301489-1 (CE Marking)
EN301489-17 (CE Marking)
iDA
SIRIM
KCG
WPC
NTC
C-Tick/RCA mark
DGPT
Operating environment
5–35ºC—ambient temperature
30–70%—relative humidity
2,500 m—high altitude limit

Note: Fan mode should be set to High when using the projector at an altitude higher than 1,500 metres.
Other environmental features
Eco Mode, Carbon Meter, Image Eco—brightness control with sensing signal, Power timer, Presentation timer
