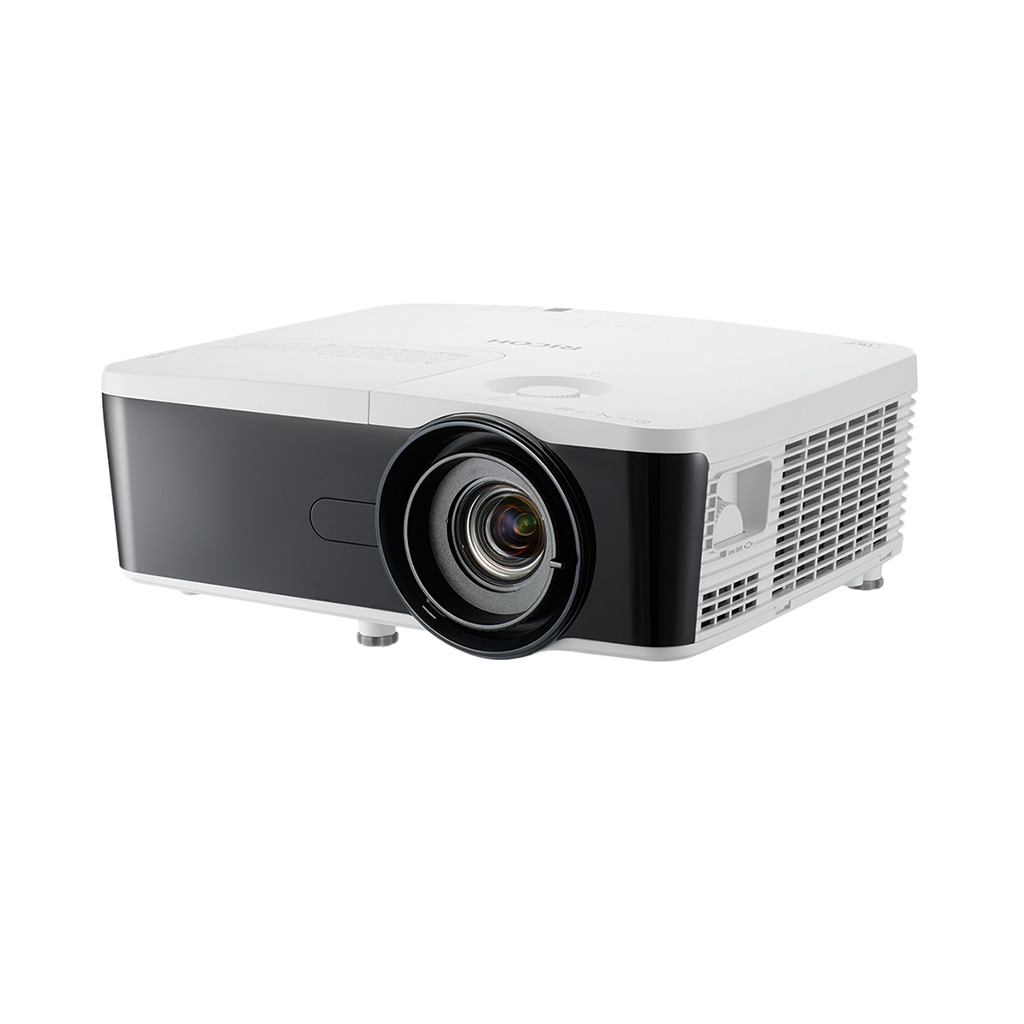

PJ WU5570

5,500-lumen standard projector

WUXGA Resolution (1920x1200)
Brightness rating of 5,500 lumens
Screen size up to 300 inches
Connect to any camera, DVD player, computer and more with dual HDMI ports

Make a big impact at conferences and seminars with HD display projection

Deliver big sound and imagery at conferences and auditoriums. The PJ WU5570 is ideal for audiences of up to 50, with bright visuals and high contrast.

More ways to connect
Choose from multiple HDMI ports, LAN connection, DisplayPort, VGA and USB ports to plug in almost any device
Keep your audience engaged with high‑definition
Project brilliant, lifelike reproductions on almost any surface up to 300 inches
Your message stays clear
The PJ WU5570 does most of the work for you with automatic colour correction capabilities, and keystone correction to fix image distortion
Keep colours bright and details sharp
Presentations won't be washed out with 5,500 lumens, and a contrast ratio of 9,000:1 adds more definition between light and dark colours

Adaptable and affordable

The projector that can adjust to your needs, whether you need to project onto a big screen up to 300 inches or as little as 30. High quality resolution and contrast for impressive performance. Connect via a choice of ports for simple operation and the ability to showcase from a choice of file formats. Choose the most appropriate place to project with vertical and horizontal lens shift and keystone correction.

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

WUXGA Resolution (1920x1200)
Brightness rating of 5,500 lumens
Screen size up to 300 inches
Connect to any camera, DVD player, computer and more with dual HDMI ports

Specifications

Projector type

Standard

What's included

CD-ROM
Includes instruction manual in Japanese, English, and Chinese

Read first manual
In English, German, French, Spanish, Italian, and Portuguese

Signal cable
RGB cable

Power cord
Yes

Remote control
Yes

Battery for remote control
AAA x 2

Carrier bag
No

Filter
Yes—built-in

Lens cap
Yes

Physical dimensions (W x D x H)—other: 424 x 356 x 150 mm
Weight—other: 6.35 kg or less

Projection system: DLP
Panel size: 0.67 inches
Contrast: 9,000:1—Image Eco Mode
Aspect ratio: 16:10
Brightness: 5,500 lumens
Resolution: 1,920 x 1,200 pixels (WUXGA)
Lamp type: High-pressure mercury lamp
Lamp wattage: 365 W—Standard Mode
292 W—Eco Mode
Lamp life: 3,000 hours—Standard Mode
4,000 hours—Eco Mode
Lens type: Built-in
Lens focal length: f:17.63–31.36 mm
Lens aperture: F:2.3–3.45
Zoom type: Manual
Zoom ratio: 1:8x
Focus method: Manual
Projection size: 30–300 inches
Projection distance: 1.0–13.5 m
Projection ratio: 1.241–2.222
Lens shift: Manual
Vertical 100–120%
Horizontal +/-10%
Keystone correction: Vertical and horizontal +/-30 degrees
Projector modes: Standard, Rear, Ceiling, Rear ceiling
Speaker: 10 W x 2
Other supported features: AV Mute, Freeze, Resize (magnify), Wall colour mode, User logo, USB firmware update

Interfaces - standard: Input
Computer IN terminal
D-SUB 15-pin x 2

Composite video terminal
RCA x 1-pin x 1

S-video terminal
Mini DIN 4-pin x 1

Digital terminal
HDMI (MHL-compatible) x 1
HDMI x 1

DisplayPort
DisplayPort x 1

Audio IN terminals
3.5 mm mini jack x 2

Microphone
3.5 mm mini jack x 1

PC control terminal
D-SUB 9-pin x 1 (RS-232C)

Service terminal
USB Mini Type B x 1

Output
Monitor OUT terminal
D-SUB 15-pin x 1

Audio OUT terminal
3.5 mm mini jack x 1

Network
LAN connectivity
RJ-45 x 1

Wireless LAN
Optional

Other
3D Sync
Mini DIN 3-pin x 1

12V trigger
3.5 mm mini jack x 1

Kensington lock: Yes
Password protection of device: Yes

Supported languages

Menu languages
Japanese, English, German, French, Italian, Spanish, Polish, Swedish, Thai, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Indonesian, Turkish, Norwegian, Finnish, Czech, Hungarian, Danish, Dutch

Instruction manual
Japanese, English, and Chinese

Read first manual
English, German, French, Spanish, Italian, and Portuguese

Power source

100–240 V, 50–60 Hz

Power consumption

Full mode
425 W—typical
470 W—maximum

Eco Mode
350 W—typical
385 W—maximum

Standby Mode
0.5 W or less—Monitor out off
1.0 W or less—Monitor out on

Safety standards

EN60950-1 (CE Marking, TUV)
IEC60950-1 (CB attestation, PSB)
Restriction of Hazardous Substances (RoHS)
REACH
EuP (Lot 6)
Battery Directive 2006/66/EC and 2005/20/EC
WEEE

Electromagnetic Compatibility (EMC) standards
