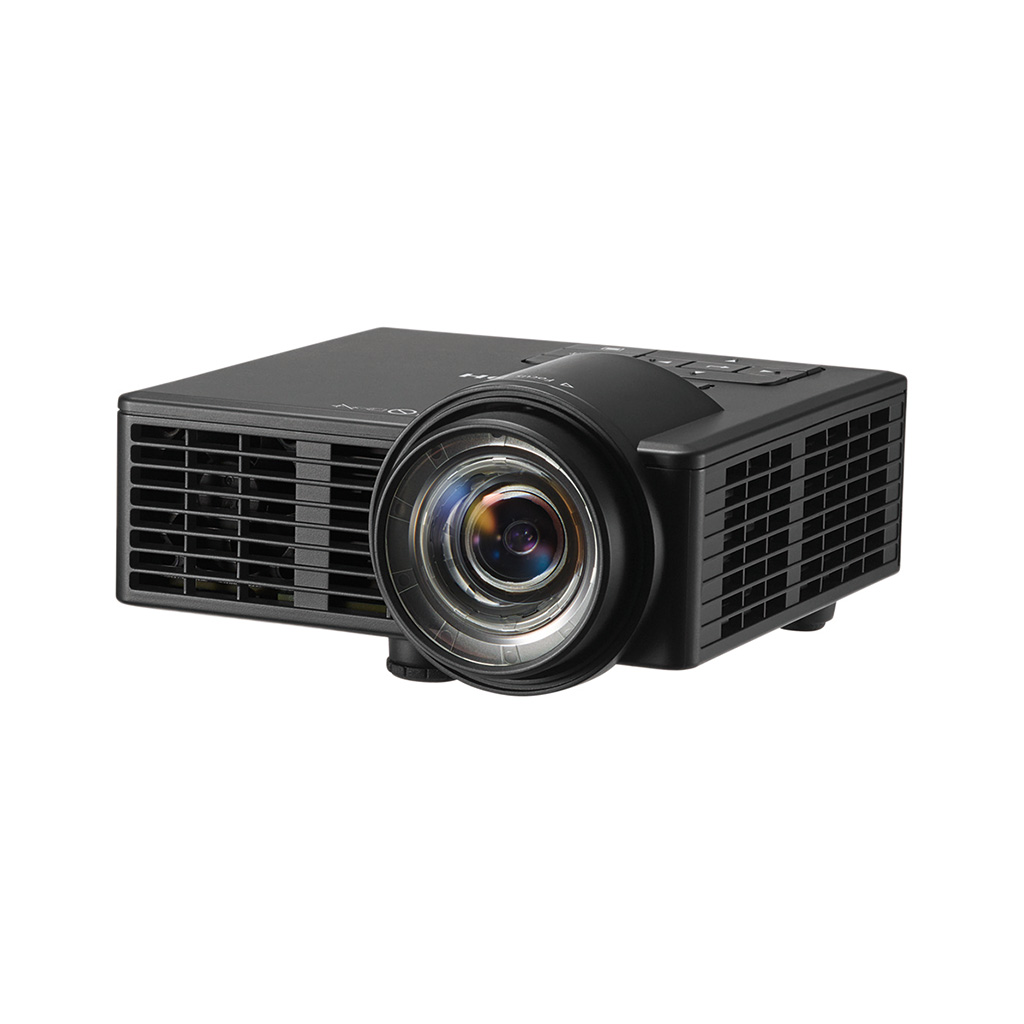

PJ WXC1110

600-lumen handy projector

  • WXGA Resolution (1280x800)
  • Brightness rating of 600 lumens
  • Screen size up to 200 inches
  • Uncompromising portability and up to 30,000 hours machine life
Related Links
Power that fits in the palm of your hand

Small enough to fit in your jacket pocket, but big enough to use in meeting rooms, exhibitions and more.

Pack light and project and present stunning visuals

An ultra small and lightweight projector that delivers beautiful presentations. Fitting in the palm of your hand, the PJ WXC1110 showcases videos, images and more.

  1. Short throw
    Place it just inches from the wall for a 25 inch diagonal screen
  2. Energy saving
    LED technology produces low energy consumption
  3. Easy connection
    Connect to your laptop, desktop and even your enabled mobile device via HDMI/MHL connectivity
  4. Present anywhere, anytime
    Save files to a microSD card, USB drive or the projector’s 2.8GB built-in memory to give PC-free presentations no matter where you are

Grab, go and present

It’s so small it can fit easily in the smallest spaces, making it the perfect portable projector. LED technology delivers bright and vibrant images that lasts for up to 30,000 hours. No need to lug carry bags and laptops, stream from your tablet or smartphone through an embedded mobile high-definition link. Present in small spaces not normally projector-friendly. Improve your retail space and use it as a small digital signage system.

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • WXGA Resolution (1280x800)
  • Brightness rating of 600 lumens
  • Screen size up to 200 inches
  • Uncompromising portability and up to 30,000 hours machine life

Specifications

Projector type
Handy
Memory - standard
2.8 GB
What's included

Cables
RGB cable

AC adaptor
Included

Lens cap
Included

Carrier bag
Included

Remote control
Standard

Battery for remote control
CR2025 x 1

Quick start guide
Included

CD ROM
User guide

Physical dimensions (W x D x H)—other
112.5 x 50.5 x 105 mm
Weight—other
0.45 kg
Projection system
DLP
Panel size
0.45 inches
Contrast
600:1—Native
40,000:1—High Contrast Mode
Aspect ratio
16:10
Brightness
600 lumens
Resolution
1,280 x 800 pixels (WXGA)
Light source
RGB LED
Light source life
20,000 hours—Bright Mode, 30,000 hours—Eco Mode
Focus method
Manual
Colour reproduction
24-bit, 16,700,000 colours
Projection size
50–100 inches—optical, 25–200 inches—mechanical
Projection distance
0.43–3.44 m
Projection ratio
0.8
Keystone correction
Automatic—vertical +/- 40 degrees
Projector modes
Standard, Rear
Input signals
Input signal
NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43, 50 Hz, 60 Hz

Analogue RGB frequency
15–91 kHz—horizontal
24–120 Hz, 120 Hz for 3D—vertical

Analogue RGB signal
Real
WXGA (1,280 x 800 pixels), XGA (1,024 x 768 pixels), SVGA (800 x 600), VGA (640 x 480)

Compression
UXGA (1,600 x 1,200 pixels), SXGA (1,280 x 1,024 pixels)
3D support
DLP Link
Speaker
1.5 W, mono
Other supported features
AV mute (blank), Resize (magnify), Wall Colour Mode, Signage Mode, 360 degree projection, User logo application through firmware upgrade
Interfaces - standard
Computer IN
Mini D-SUB 15 pin via adapter cable

Phone OUT
Mini jack 3.5 mm x 1

SD card port
Micro SD x 1—read only

USB port
USB-A x 1

Digital terminal
HDMI x 1

Wireless LAN connectivity
Available with HDMI Wi-Fi
Kensington lock
Yes
Password protection of device
Yes
Supported languages

Menu languages
Japanese, English, German, French, Italian, Spanish, Polish, Swedish, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Dutch, Greek

Quick start guide
English, French, Spanish, Portuguese, German, Traditional Chinese, Simplified Chinese

User guide
English—on CD ROM

Power source
100—240 V, 50/60 Hz
Power consumption
76 W or less—Full Mode
0.5 W or less—Standby Mode
65 W, 19 V, 3.42 Amps—DC output
Environmental standards
Restriction of Hazardous Substances (RoHS)
REACH
EuP (Lot 6)
Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators
Directive 2005/20/EC of the European Parliament and of the Council of 9 March 2005
Directive 94/62/EC on packaging and packaging waste of 20 December 1994
WEEE
Taiwan Battery Regulation
Green labels
Taiwan Green Mark
Safety standards
EN60950-1 (TUV Mark)
IEC60950-1 (PSB, CB attestation)
BIS (India)
Electromagnetic Compatibility (EMC) standards
EN55022
EN55024 (CE Marking)
EN61000-3-2
EN61000-3-3
AS/NZS CISPR22 (RCM)
HKG (EMC)
Operating environment
5–40ºC temperature
80% relative humidity
Other environmental features
Eco Mode
