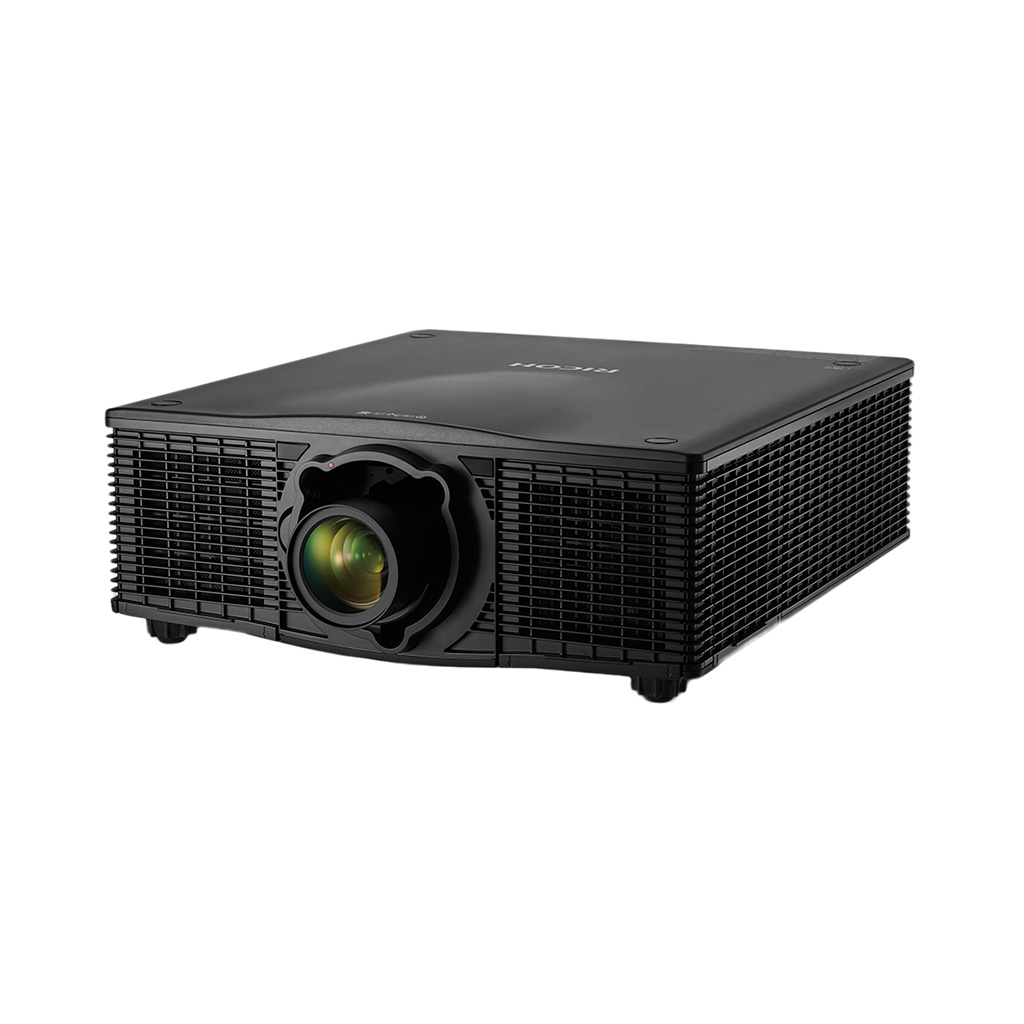

PJ KU12000

12,000-lumen high-brightness projector

  • WUXGA Resolution (1920x1200)
  • Brightness rating of 12,000 lumens
  • Screen size up to 500 inches
  • Choose from six interchangeable lenses to customise presentations

Wow audiences with projection that’s bright and clear, from offices to auditoriums

Deliver crisp and clear images, far and wide. The PJ KU12000 is a high‑end projector made to project your message in large settings.

  1. Be twice as bright
    Help your audience see everything with the PJ KU12000's dual lamps with 12,000 total lumens
  2. Project anywhere
    The motorised lens shift lets you change projection without moving the projector, from the ceiling to the floor
  3. Stay focused
    Automate image alignment with Keystone Correction and Pincushion Correction image adjustment, even use multiple projectors to turn two images into one huge presentation
  4. Easy to connect
    With HDBaseT, HDMI and USB input you can connect to almost any media source, including Blu-Ray players, computers and more

Shine bright in big picture

This projector is packed with features to present your presentations, images and videos for the best effect. Use the motorised lens shift to change projection to vertical or horizontal without moving the projector. Overlap images from multiple projectors with the warping and blending tool. Project onto cylindrical shapes and more without distortion and display signs, videos and more. Maintain wider and vivid images in large scale with the ability to project clearly from over 77 metres.


Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • WUXGA Resolution (1920x1200)
  • Brightness rating of 12,000 lumens
  • Screen size up to 500 inches
  • Choose from six interchangeable lenses to customise presentations

Specifications

Projector type
High-brightness
What's included

Cables
VGA cable
AC power cord

DVI-HDMI adaptor
Standard

Remote control
Standard—battery included

Carrier bag
Not available

Physical dimensions (W x D x H)—other
520 x 591 x 194 mm
Weight—other
23.8 kg
Projection system
DLP
Panel size
0.96 inches
Contrast
5,000:1
Aspect ratio
16:10
Brightness
12,000 lumens
Resolution
1,920 x 1,200 pixels (WUXGA)
Lamp type
Dual high-pressure mercury lamps
Lamp wattage
465 W—Normal Mode
Lamp life
1,500 hours—Normal Mode
2,000 hours—Eco Mode
Lens type
Type B1—Short zoom
Type B2—Wide zoom
Type B3—Wide zoom
Type B4—Standard
Type B5—Standard zoom
Type B6—Long zoom
Zoom type
Motorised
Zoom ratio
Depends on lens in use
Focus method
Motorised
Projection size
Depends on lens in use
Projection ratio
Depends on lens in use
Lens shift
Motorised
Vertical +/- 60%
Horizontal +/- 25%
Keystone correction
Vertical +/- 20 degrees
Horizontal +/- 20 degrees
Input signals

Computer IN
IBM PC compatible, HDTV support—1080i, 1080p, 720p, 576i, 576p, 480i, 480p

Video IN
NTSC, PAL, SECAM, HDTV, EDTV, SDTV

Control system
Crestron, PJ Link, AMX
Other supported features
360-degree free tilt, Portrait mode, Picture in Picture, Picture by Picture, Edge blending, Pincushion correction, Geometric correction
Interfaces - standard

Connection terminals
3D Sync x 1
DVI-D x 1
Computer In x 1
Computer Out x 1
5 BNC x 1
HDMI x 1
3G-SDI In x 1
Video In x 1

Control terminals
D-SUB 9-pin RS232 x 1
3.5 mm stereo x 2 (remote in/out)

Wired LAN
RJ-45 x 1 (LAN)
RJ-45 compatible with HDBase-T x 1

USB
USB Type A x 1 for service
Mini USB x 1 for service

Supported languages

Menu languages
English, Simplified Chinese, Traditional Chinese, French, German, Italian, Japanese, Korean, Russian, Spanish, Portuguese, Dutch, Indonesian

Quick Start Guide
English, German, French, Spanish, Italian, Brazilian Portuguese

User guide
English, Chinese, Japanese—provided on CD-ROM

Note: French, German, Italian, and Spanish user guide available on Ricoh website.

Power source
100–240 V, 50–60 Hz
Power consumption
1,080 W +/- 10%—Normal Mode
870 W +/- 10%—Eco Mode
Environmental standards
Restriction of Hazardous Substances (RoHS)
REACH
EuP (Lot 6)
Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators
Directive 2005/20/EC of the European Parliament and of the Council of 9 March 2005
Directive 94/62/EC on packaging and packaging waste of 20 December 1994
WEEE
China Battery Regulation
Safety standards
EN60950-1 (CE Marking, TUV Mark)
IEC60950-1 (PSB, CB attestation)
GB4943 (CCC) (China)
Electromagnetic Compatibility (EMC) standards
EN55022
EN55024 (CE Marking)
EN61000-3-2
EN61000-3-3
AS/NZS CISPR22 (C-Tick)
GB9254, GB17625.1 (CCC) (China)
Other environmental features
Eco Mode
