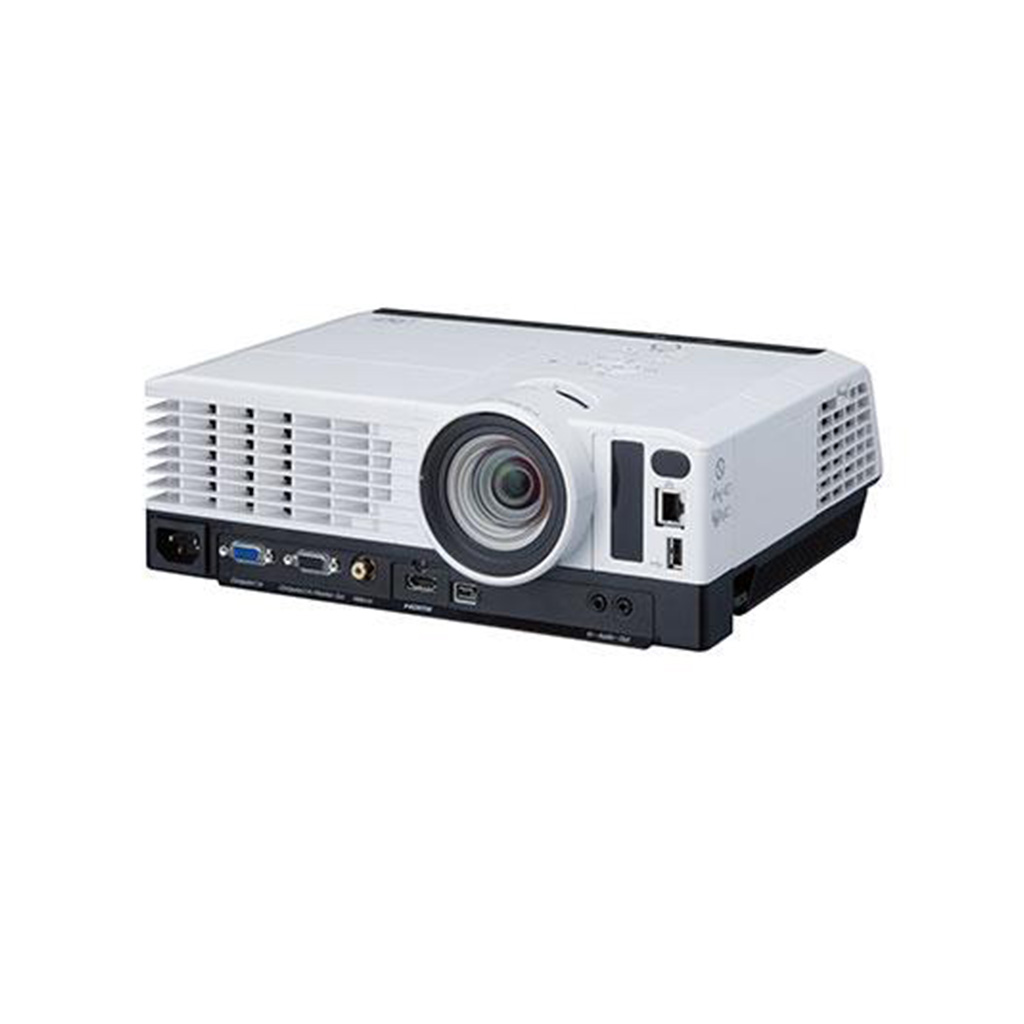

PJ WX3351N 3,600-lumen desk-edge projector

  • 1,280 x 800 pixels (WXGA)
  • 5,000-hour lamp life (Eco)
  • 40–400-inch projection size
  • Network connectivity
Related Links
From small ideas, big opportunity grows

Events, meetings and exhibitions can drive change. Point a spotlight on your ideas with projectors.

Connect and collaborate easily, in classrooms and meetings

Attract attention when you deliver your presentation or video. The PJ WX3351N is a lightweight, high quality projector perfect for busy offices and schools.

  1. Widescreen projection with less clutter
    Projector cables and a noisy fan can derail your presentation. Front facing design directs all noise, heat and cables away from your audience
  2. A network projector with wired or wireless options
    Standard wired and wireless networking for maximum flexibility. Miracast mobile connectivity enables screen mirroring from your PC and Android devices
  3. Built in audio
    Take advantage of booming audio from 10‑watt, built-in speakers and eliminate additional speaker costs
  4. Communicate creatively with 360‑degree projection
    Project on the ceiling or floor with 360‑degree projection that allows you to project at any angle. Keystone correction automatically fixes any image distortion

Lightweight design, bright impact

An innovative small projector with added space saving features. No fuss operation with auto‑brightness and more ways to connect, including from mobile devices. Display videos with sound using the built in speaker – you can show movies in 3D with a screen size up to 400 inches. No heat or noise to disturb you, all cables and fan exhaust are located in front for desk front placement.

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • 1,280 x 800 pixels (WXGA)
  • 5,000-hour lamp life (Eco)
  • 40–400-inch projection size
  • Network connectivity

Specifications

Projector type
Desk-edge
What's included
CD-ROM
Includes instruction manual in English, JPEG conversion software, network utility, and projector management utility

Signal cable
RGB cable—3 metres

Power cord
3 metres

Conversion adapter
Yes

Carrier bag
Yes

Remote control
Yes

Battery for remote control
AAA battery x 2
Physical dimensions (WxDxH)—mainframe
297 x 235 x 100 mm
Weight—mainframe
3.1 kg
Projection system
DLP
Contrast
13,000:1
Aspect ratio
16:10
Brightness
3,600 lumens
Resolution
1,280 x 800 pixels (WXGA)
Light source life
3,500h/5,000h (Eco)
Lamp type
High-pressure mercury lamp
Lamp wattage
250 W
Lens focal length
f:13—19.6 mm
Lens aperture
F:2.56–3.35
Zoom type
Manual
Zoom ratio
1.5x
Focus method
Automatic
Colour reproduction
1,073,000,000 colours
Projection size
40–400 inches
Projection distance
0.77–12.23 m
Projection ratio
0.89–1.40
Keystone correction
Automatic—vertical
Manual—vertical, horizontal, four corners
Projector modes
Standard, Rear, Ceiling, Rear ceiling, 360-degree free tilt
Input signals
RGB compatible signals (analogue, digital)
WXGA (1,280 x 800), XGA (1,024 x 768), SVGA (800 x 600), VGA (640 x 480)—real display
UXGA (1,600 x 1,200), SXGA (1,280 x 1,024)—compressed representation

Input signals (mono)
NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43, 50 Hz, 60 Hz, PAL-N

Analogue RGB compatible scanning frequency
15–100 kHz—horizontal
23–85 Hz—vertical
3D support
Yes
Control system
AMX, Crestron, PJLink
Speaker
Internal, 10 W, mono
Other supported features
AV mute, Freeze, Resize (magnify), Wall colour correction, Adjuster (front x 2, rear x 1), Multi screen (1 PC to 4 projectors), Automatic brightness control, Closed captioning, Color Universal Design, Presentation timer, Interactive ready (Point blank), Projector management, Miracast, Digital camera connectivity, Simultaneous wired and wireless connectivity, USB firmware updates, Web Image Monitor connectivity, User logo, DLNA, Front exhaust fan, Digital zoom—80 to 100% reduction, High altitude mode—up to 2,500 m
Interfaces - standard

Computer 1 input terminal
Mini D-SUB 15-pin x 1

Computer 2 monitor input/output terminal
Mini D-SUB 15-pin x 1

Video terminal
RCA 1-pin x 1

Audio input terminal
Mini jack x 1

Audio output terminal
Mini jack x 1

PC control terminal
USB Type Mini B x 1

HDMI terminal
HDMI x 1

USB terminal
USB Type A x 1

LAN
RJ-45 x 1 (10Base-T/100Base-TX/1000Base-T compliant)

Wireless LAN
IEEE 802.11a/b/g/n

Communication modes
Ad-hoc, infrastructure, Miracast

Miracast supported devices
Nexus 5 (Android 4.4), Nexus 7 (2013, Android 4.3), Nexus 10 (Android 4.4), Surface 2 (Windows RT 8.1), Surface Pro 3 (Windows 8.1 Pro)

Note: Based on WiFi Certified Miracast standard, but connectivity with all Miracast compatible devices is not guaranteed.

Network authentication
WPA/WPA2-PSK, WPA2-PSK, WPA/WPA2-EAP, WPA2-EAP, open system

Network encryption
WEP, TKIP, CCMP (AES), no encryption

Present direct from USB device (PC-free presentation)
Slide show—still image, animation
Thumbnails—supported
Compatible format for USB memory—JPEG, MPEG2, MPEG4
File extension for USB memory—.jpg, .jpeg, .mpeg, .mpg, .m2ts, .m2t, .mp4, .mov

Digital camera connection support
Pentax
645D, K-50, K-3, K-01, K-5 II, K-5 II S, Q7, Q10, WG-3, WG-3 GPS, WG-4, WG-4 GPS, WG-20, WG-20 GPS, MX-1

Ricoh
G700, GXR GR LENS A12 50mm, GXR GR LENS A12 28mm

Network capable
Yes
Kensington lock
Yes
Password protection of device
Yes
Other security features

Key lock of device, Security bar

Open SSL acknowledgment
This product includes software developed by the OpenSSL Project to use in the OpenSSL Toolkit (http://www.openssl.org/)
This product includes cryptographic software written by Eric Young ([email protected])
This product includes software written by Tim Hudson ([email protected])

Windows
Network utility software
Windows Vista SP2 or greater—Home Basic, Home Premium, Business, and Ultimate editions
Windows 7 SP 1—Home Premium, Professional, Enterprise, and Ultimate editions
Windows 8 desktop mode—Pro and Enterprise editions
Windows 8.1 desktop mode—Pro and Enterprise editions

JPEG conversion software
Windows Vista SP2 or greater—Home Basic, Home Premium, Business, and Ultimate editions
Windows 7 SP1—Home Premium, Professional, Enterprise, and Ultimate editions
Windows 8—Pro and Enterprise editions
Windows 8.1—Pro and Enterprise editions

Projector management software
Windows Vista SP2 or later—Home Basic, Home Premium, Business, and Ultimate editions
Windows 7 SP1—Home Premium, Professional, Enterprise, and Ultimate editions
Windows Server 2008 SP2
Windows Server 2008 R2 SP1—standard edition
Windows 8—Pro and Enterprise editions
Windows 8.1—Pro and Enterprise editions

Interactive kit software
Windows 7 SP1—Home Premium, Professional, Enterprise, and Ultimate editions
Windows 8 desktop mode—Pro and Enterprise editions
Windows 8.1 desktop mode—Pro and Enterprise editions

Web image monitor
Internet Explorer 8 and above supported

Note: Not compatible with Windows modern UI and Windows RT.
Macintosh
Network utility software—OS X 10.7–10.10, Web Image Monitor—Safari 7
Supported languages
Menu languages
Japanese, English, French, German, Italian, Spanish, Portuguese, Russian, Swedish, Turkish, Polish, Norwegian, Czech, Greek, Hungarian, Romanian, Danish, Dutch, Finnish, Thai, Arabic, Traditional Chinese, Indonesian
Standard
PC free presentation
Network utility software
JPEG conversion software
Projector management utility
Optional
Interactive kit software
Power source
100–240 V, 50/60 Hz
Power consumption
316 W—Standard mode
334 W—Maximum power consumption
0.3 W—Standby mode (network off)
1.4 W or less—Standby mode (wired LAN on)
1.8 W or less—Standby mode (wireless LAN on)
Sound power level
38 dB or less—Standard mode
32 dB or less—Eco mode
Environmental standards
Restriction of Hazardous Substances (RoHS)
REACH regulations
ErP (Lot 6, 26)
WEEE
Safety standards
EN60950-1 (CE Marking, TUV Mark)
IEC60950-1 (CB attestation)
THA-SAFETY-0001 (power supply)
NZL-SAFETY-0002 (power supply and power cord)
AUS-SAFETY-0003 (power supply and power cord)
Electromagnetic Compatibility (EMC) standards
EN55022
EN61000-3-2
EN61000-3-3
EN55024 (CE Marking)
EMC (RCM Mark)
HKG (EMC)
Wireless LAN standards
EN300 328 (CE)
EN301 489-1, EN301 489-17 (CE)
NCC
Wireless RCM mark
ESER
SIRIM
HKG
WPC
NTC
DGPT
Operating environment
Conditions of environment
Temperature 5–35ºC
Relative humidity 30–70%

Storage conditions
Temperature from -10 to 50ºC
Humidity from 15 to 80% relative humidity
Maximum stack 12 cartons

Transportation conditions
Temperature from -10 to 50ºC
Humidity from 15 to 80% relative humidity
Other environmental features
Eco Mode, Carbon meter, Timer On/Off
Projection Calculator

Use this convenient tool to estimate the throw distance for selected Ricoh projectors. It is not intended to provide exact measurements.

Please click the link to visit the Projection Calculator.
