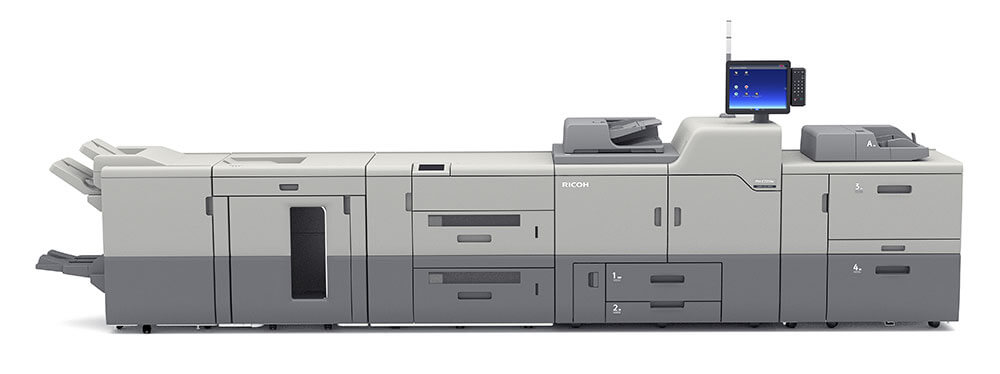

Pro C7200SX Graphic Arts Edition

Colour production printer

  • Produces up to 85 prints per minute in colour
  • Fifth colour station can print white, clear, pink, neon yellow or invisible red
  • Offset-like print quality
  • Broad paper support

Stand out from the competition with more colour choices

Colour printing that makes an impact. The Pro C7200SX, Graphic Arts Edition, delivers five colour printing, along with built in scanning.

More choice, more revenue

The Pro C7200SX, Graphic Arts Edition, adds fifth colour printing for more possibilities: use neon yellow to add impact, add pink to get a vibrant orange, provide security with invisible red, or print on dark stock with vibrant white in a single pass. Print a wider range of jobs with double-sided, oversize printing up to 700 mm in length and on heavy weight stocks up to 360 gsm. Scan documents in full colour and send to clients for proofing, straight from the device. Operators can use the paper library to choose from pre-set configurations or match stocks. Produce beautifully finished books, reports and brochures with a choice of optional finishing options, from perfect binding and hole punching to multi folding and ring binding

  1. More paper, less downtime
    Paper capacity can be increased to 16,200 sheets
  2. Print on heavily textured stock
    Amaze your customers with impressive coverage and rich appearance on deeply textured stock
  3. Precision with speed
    High definition imaging, auto-calibration, auto-registration and mechanical paper registration
  4. Do it yourself
    Handle maintenance issues in house with Trained Customer Replaceable Units (TCRUs) to maximise uptime
  5. Find what you need
    Use the paper library to configure jobs for specific media and stocks
  6. Stay in control
    Choice of two EFI Fiery controllers or Ricoh TotalFlow controller with direct connectivity to Heidelberg Prinect, Kodak Prinergy or Screen Equios workflows
  7. Scan and send
    Scan colour jobs and share them straight from the device for fast review and approval


Finish it off in style

Improve turnaround times and increase your print capacity. Ricoh’s line of finishers make it easy to print more types of documents, quickly. Create professional saddle-stitched booklets with minimal effort using the booklet maker, folder and trimmers. Fold media in multiple styles to give customers more options. Collate, bind, punch, trim and add or close rings with minimal manual intervention.

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • Produces up to 85 prints per minute in colour
  • Fifth colour station can print white, clear, pink, neon yellow or invisible red
  • Offset-like print quality
  • Broad paper support

Functions
Copy, print, scan
Replaces products
Pro C7100SX
Colour
Yes
Printer controller - standard
GWNX
Printer controller - optional
EFI Fiery colour controller E-45A
EFI Fiery colour controller E-85A
Ricoh TotalFlow Print Server R-62A
HDD
640 GB (320 GB x 2)
Document server

640 GB (320 GB x 2) HDD capacity

Note: For details about the document server, refer to the Sales handbook.

CPU
1.91 GHz
Memory - standard
4 GB
Operation panel
17-inch touch panel
Physical dimensions (W x D x H)—other
1,320 x 910 x 1,230 mm—mainframe
591 x 520 x 175 mm—SPDF
865 x 730 x 1,000 mm—4,000-sheet LCT RT5110
1,054 x 730 x 1,000 mm—4,400-sheet vacuum-feed LCT RT5120
330 x 730 x 1,000 mm—Bridge unit BU5010
690 x 561 x 210 mm—500-sheet multi-bypass tray BY5020
495 x 530 x 175 mm—1,000-sheet A3 tray Type TK5010
1,290 x 730 x 1,000 mm—730-sheet vacuum-feed banner sheet tray Type S9
1,090 x 561 x 210 mm—500-sheet multi-bypass banner sheet tray Type S9, when attached to multi-bypass tray BY5020
330 x 730 x 1,010 mm—Buffer pass unit Type S9
55 x 485 x 190 mm—Decurler unit DU5060
996 x 730 x 1,126 mm—3,000-sheet finisher SR5060, with all extendable trays closed
996 x 730 x 1,126 mm—2,500-sheet booklet finisher SR5060, with all extendable trays closed
1,115 x 591 x 555 mm—Booklet trimmer TR5040
870 x 730 x 1,010 mm—Ring Binder RB5020
540 x 730 x 1,290 mm—2-tray cover interposer CI5030
470 x 730 x 1,000 mm—Multi-folding unit FD5020
1,090 x 791 x 1,387 mm—Perfect Binder GB5010
900 x 730 x 1,010 mm—High-capacity stacker SK5040
1,200 x 700 x 1,100 mm—Plockmatic high-capacity interposer HCI3500
900 x 680 x 1,060 mm—Plockmatic multi-purpose stacker MPS1260
Weight—other
600 kg or less—mainframe
14 kg or less—SPDF
185 kg or less—4,000-sheet LCT RT5110
230 kg or less—4,400-sheet vacuum-feed LCT RT5120
40 kg or less—Bridge unit BU5010
20 kg or less—500-sheet multi-bypass tray BY5020
10 kg or less—1,000-sheet A3 tray Type TK5010
7 kg or less—730-sheet vacuum-feed banner sheet tray Type S9
9.5 kg or less—Multi-bypass banner sheet tray Type S9
90 kg or less—Buffer pass unit Type S9
5 kg or less—Decurler unit DU5060
112 kg or less—3,000-sheet finisher SR5050
112 kg or less—2,500-sheet booklet finisher SR5060
75 kg or less—Booklet trimmer TR5040
140 kg or less—Ring Binder RB5020
45 kg or less—2-tray cover interposer CI5030
92 kg or less—Multi-folding unit FD5020
350 kg or less—Perfect Binder GB5010
120 kg or less—High-capacity stacker SK5040
15 kg or less—High-capacity stacker SK5040 roll-away cart
250 kg—Plockmatic high-capacity interposer HCI3500
65 kg—Plockmatic multi-purpose stacker MPS1260 lift unit
5 kg—Plockmatic multi-purpose stacker MPS1260 docking unit
Minimum space requirements

1,000 mm—front
1,000 mm—left
1,000 mm—right
800 mm—rear

Note: PM parts maintenance tasks require additional rear clearance.

Max monthly volume
240,000 copies
Machine life
14,400,000 copies or 5 years, whichever comes first
Duty cycle
650,000 copies per month
Colour ratio
80%
Supply yields

45,000 sheets per 1,482 g bottle of black toner
45,000 sheets per 1,482 g bottle of cyan toner
45,000 sheets per 1,482 g bottle of magenta toner
45,000 sheets per 1,482 g bottle of yellow toner
27,000 sheets per 1,553 g bottle of clear toner
17,500 sheets per 1,553 g bottle of white toner
25,700 sheets per 1,484 g bottle of neon yellow toner
25,700 sheets per 1,484 g bottle of neon pink toner
17,300 sheets per 1,100 g bottle of invisible red toner

Note: All CMYK toner yields are measured with the A4/8.75% coverage chart, based on 50 pages per job and 80% duplex printing. Clear, white, neon yellow, neon pink, and invisible red toner yields are measured with the A4/15% coverage chart with 50 pages per job and 80% duplex printing.

136,000 sheets per waste toner bottle

Note: Based on A4/70% colour rate, 35% full colour and four colour coverage, 6% black and white.

5,000 staples per Type M cartridge for finishers SR5050 and SR5060—normal staple
5,000 staples per Type U cartridge for finisher SR5060—Saddle stitch staple
5,000 staples per Type M staple cartridge refill for finishers SR5050 and SR5060—normal staple
5,000 staples per Type T staple cartridge refill for finisher SR5060—saddle stitch staple

75 sets per ring cartridge

Standard input capacity (sheets)
2,500
Maximum input capacity (sheets)
16,200
Maximum output capacity (sheets)
13,000
Paper input configuration - standard
1,000-sheet x 2 paper input tray, 500-sheet paper input tray, duplex unit, 220-sheet SPDF
Paper input configuration - optional
1,000-sheet A3 tray Type TK5010, 4,000-sheet LCT RT5110, 500-sheet multi-bypass tray BY5020, Multi-bypass attachment kit for vacuum feed LCT Type S9, 4,400-sheet vacuum-feed LCT RT5120, 500-sheet multi-bypass banner sheet tray Type S9, 730-sheet vacuum-feed banner sheet tray Type S9, Bridge unit BU5010
Paper output configuration - optional
Buffer pass unit Type S9, Decurler unit DU5060, Perfect Binder GB5010, 2-tray cover interposer CI5030, Multi-folding unit FD5020, Ring Binder RB5020, High-capacity stacker SK5040, 2,500-sheet booklet finisher SR5060, Booklet trimmer TR5040, 3,000-sheet finisher SR5050, Punch units PU5020
Paper output configuration - 3rd Party
Plockmatic HCI3500 high-capacity interposer, Plockmatic PBM 350 booklet maker, Plockmatic PBM 500 booklet maker, Plockmatic MPS1260 multi-purpose stacker, GBC StreamPunch Ultra
Supported media
Paper types

Standard paper input tray 1
Plain paper, recycled paper, pre-printed, letterhead, pre-punched

Standard paper input tray 2
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock¹

LCT RT5110 trays 3 and 5
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², glossy/matte paper, OHP transparency, translucent paper, envelope, textured paper

LCT RT5110 tray 4
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², glossy/matte paper, OHP transparency, translucent paper, envelope, label paper, textured paper

Vacuum-feed LCT RT5120
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², glossy/matte paper, OHP transparency, translucent paper, envelope, textured paper

Multi-bypass tray BY5020
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², translucent paper

¹—Tab sheet holder option is needed when printing tab stock
²—Tab fence is needed when printing tab stock

Maximum paper size
SRA3++
Media weight (g/m2)
52.3–360
Interfaces - standard
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
SD slot x 3—1 on the controller board, 2 on the operation panel
USB 2.0 Type A x 6—2 at rear of machine, 4 on the operation panel
USB 2.0 Type Mini-B x 1—on the operation panel
Network protocols - standard
TCP/IP (IPv4, IPv6)
MIB support
Standard
MIB-II (RFC1213)
Host Resources (RFC1514)
Printer MIB (RFC1759)
Printer Port Monitor MIB

Private
Ricoh original MIB
Copy speed

85 cpm—A4 LEF

Multi-copy speed—A4 LEF
85 cpm—from memory
95 cpm—from SPDF

First copy time
11 seconds—A4 LEF plain paper, face-up from Tray 1 in single-sided mode
Copy resolution
1,200 dpi, 2-bit
Original type
Book, sheet, object
Original size
A3—maximum
A5—minimum
Copy size
A5–A3
Custom size—up to 323 x 480 mm
Full image copy
93% and centring
Quantity selection
1–9,999 sets
Zoom range
25–400%, in 1% steps
Enlargement ratios
115%, 122%, 141%, 200%, 400%
Reduction ratios
93%, 82%, 75%, 71%, 65%, 50%, 25%
Image density adjustment
Automatic and manual; manual—9 levels
Original type setting
Text, text/photo, photo, map, pale, generation, inkjet, highlight pen
Colour mode
Options
Automatic colour selection, full colour, black and white, single colour, two colour

Single colour
12 colours and black—default
15 colours—user selection

Two colour
Black and other colour, red and black
Paper selection
Tray 1, tray 2, 4,000-sheet LCT RT5110, 4,400-sheet vacuum-feed LCT RT5120, 500-sheet multi-bypass tray BY5020
Automatic paper selection (APS)
Supported

Duplex copy
Single-sided to duplex, duplex to duplex, book to duplex, front and back to duplex
Book copy
Booklet, magazine
Series copy
Book to single-sided, book to duplex, front and back to duplex
Combine copy
2, 4, or 8 pages into 1 single-sided sheet
4, 8, or 16 pages into 1 duplex sheet
Interrupt copy
Standard
Magnification
Size—supported, Directional—in 1% steps, Directional size—in 1 mm steps
Paper library
Supported
User codes
1,000 user codes, 8 digits in each code
Cover sheet
Front and back covers—copy or blank; copy single-sided or duplex
Slip sheet
Copy or blank
Chaptering
Up to 100 chapters
Paper designation
Selectable from 3 trays—up to 100 positions
Stapling
Supported, 4 positions—with finisher
Punch
Supported—with finisher
Electronic sorting
Supported—with finisher

Margin/erase adjustment
Margin—in 1 mm steps
Erase inside, erase outside, erase centre and border


Colour adjustment
Colour balance adjustment, colour balance program, colour registration
Image adjustment
Sharp/soft, contrast, background density, under colour removal, automatic colour selection sensitivity, text-photo separation sensitivity, colour erase sensitivity, automatic colour calibration (ACC)

Stamps
Background numbering—not supported
Page numbering—6 styles
Date stamp—5 styles
User stamp—5 styles
Preset stamp—8 styles
Stamp text—Supported
Image rotation
Supported
Print speed colour
85 ppm
Print speed black and white
85 ppm
Printing process
4-drum dry electrostatic transfer system with internal transfer belt
Printing technology
Vertical-cavity surface-emitting laser (VCSEL)
Fusing
Oil-less belt-fusing method
Toner development
PXP-EQ chemical toner, polymerisation
Printer drivers

Standard
PCL 5c, PCL 6, RPCS

Optional
PostScript 3

Duplex printing
Standard
Envelope printing
Supported—with optional LCT RT5110 and vacuum-feed LCT RT5120
Maximum printable area
320 x 480 mm
323 x 1,252 mm—with optional banner sheet tray
Fiery controller
Fiery colour controller E-45A or Fiery colour controller E-85A—optional
Printer drivers
Fiery E-45A
PCL 5c, PCL 6, PostScript 3—CPSI v3020 and APPE v4.4

Fiery E-85A
PostScript 3—CPSI v3020 and APPE v4.4

Printer driver fonts
136 fonts and 2MM—PostScript 3
80 fonts—PCL 5c and PCL 6

Fiery menu via operation panel
Supported

Print resolution
1,200 dpi, 2-bit
600 dpi with PCL 5c

Supported file formats
PS, PDF, EPS, TIFF, PDF/VT, PPML, VPS, PCL—Fiery E-45A
PS, PDF, EPS, TIFF, PDF/VT, PPML, VPS—Fiery E-85A

Variable Data Printing (VDP)
PPML v3, Fiery Free Form v1 and v2.1, PDF/VT-1 and PDF/VT-2
Scan speed
A4 LEF, 200 dpi
Single-sided
120 ipm

Duplex
220 ipm

Scan methods
Scan to email, Scan to folders

Scan mode
Black and white
Text, text/line art, text/photo, photo, greyscale; default text/line art

Colour
Text/photo, photo, Automatic Colour Selection
Scan resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Scan area
297 x 432 mm
Original size
A5 SEF–A3 SEF, A5–A4 LEF, B5 SEF–B4 SEF, B5 LEF
Custom size
140 x 140 mm—minimum
297 x 432 mm—maximum
File types
TIFF, JPEG, PDF, high-compression PDF
Image density adjustment
Automatic selection, manual selection—7 levels
Scan to email—other features
Protocols
SMTP gateway, TCP/IP

Authentication
SMTP, POP before SMTP, S/MIME

Scan resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Scan to email size
128–102,400 KB—with restriction; default 2,048 KB
725 MB—without restriction

Maximum email addresses per send
500—from HDD
100—direct input
100—via LDAP

Email addresses stored in HDD
Maximum email addresses—2,000
Maximum registered group addresses—500 addresses, 100 addresses per group
Maintain email addresses—via operation panel, SmartDeviceMonitor for Admin, Web Image Monitor
Search method—by name, email address

Body message
Manual input—maximum 80 characters
User pre-registered body message—5 messages, 80 characters over 5 lines
User pre-registered title—maximum 20 characters per name of pre‑registered body message
Preset message—This e-mail includes attached file sent from <device name>.

Input subject
Manual input—maximum 128 characters

LDAP search
Supported

File type
Single page—TIFF, JPEG, PDF, high compression PDF
Multi-page—TIFF, PDF, high compression PDF

Attention
To, Cc, Bcc

Program registration
Up to 25 programs

Divide and send
Divide by page or size; default by size

Resend
Supported
Scan to folder
Protocols
SMB, FTP

Security
Client folder logon, transmission encryption of logon name and password

Resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Client folder addresses stored in HDD
Maximum registered folder addresses—2,000
Maintain folder addresses—via operation panel, Web Image Monitor

Maximum client folders/PCs per send
50 folders

Maximum group addresses
100 destinations—50 to folder, 100 to email

Maximum file size
Default
2,000 MB in 1 document

When combined with Scan to email
128–102,400 KB; default 2,048 KB—with restriction
725 MB—without restriction

Note: File size depends on the selected Scan to email file size restriction.

File type
Single page—TIFF, JPEG, PDF, high compression PDF
Multi-page—TIFF, PDF, high compression PDF

Input subject
Not supported

Program user settings
Up to 25 programs

Divide and send
By page or size; default by size

Resend
Yes, No; default Yes
TWAIN scanning
Scan mode
Standard, Photo, OCR, Filing

Scan resolution
100–1,200 dpi

Image adjustment
Brightness, Contrast, Threshold, Gamma Adjustment, Half‑tone Pattern

Endorse
Date, Page number, Text

Stamp originals
Not supported

Supported operating systems
Windows 7, 8.1, 10, Server 2008/2008 R2,Server 2012/2012 R2, Server 2016
Other scan features
SADF/batch mode, Mixed size mode, Thin paper mode not supported
Encryption
Encryption—print and scan data
Encryption of data sent via Scan to email (S/MIME)
Authentication
Simple network security setting
DHCP option 60 and 77
Other security features
Security features are provided by the Ricoh GWNX controller. The Fiery E-45A and Fiery E-85A controller security is based on the EFI Fiery security policy compliant with the EFI Fiery System FS300 Pro.
Other supported environments
For Fiery system requirements, refer to the Sales handbook
Standard
@Remote Embedded
Web Image Monitor
Device SDK
Optional
Device Manager NX
InfoPrint Manager
TotalFlow BatchBuilder
TotalFlow Prep
TotalFlow Production Manager
TotalFlow Supervisor
Ricoh ProcessDirector
FusionPro VDP Creator
FusionPro Expression
OL PlanetPress Connect
PrintShop Mail
EFI Digital StoreFront
EFI Graphic Arts Premium Edition
EFI Fiery Central
EFI JobFlow
EFI Impose & Compose
Power source
220–240 V, 16 A, 50/60 Hz
Power consumption
5,000 W or less—maximum power
Energy Saver Mode (Sleep Mode)—4 W or less
1,000 W or less—4,400-sheet vacuum feed LCT RT5120
150 W or less—3,000-sheet finisher SR5050
150 W or less—2,500-sheet booklet finisher SR5060
250 W or less, maximum—Booklet trimmer TR5040
75 W or less, average—Booklet trimmer TR5040
400 W or less—Ring Binder RB5020
623 W or less—Perfect Binder GB5010
30 W or less—Decurler unit DU5060
240 W or less—Multi-purpose folding unit FD5020
131 W or less—High-capacity stacker SK5040
200 W or less—Buffer pass unit Type S9
Warm-up time
300 seconds or less—mainframe
380 seconds or less—Perfect Binder GB5010
Sound power level
Mainframe
73 dB—standby
81 dB—operating

Full configuration
73 dB—standby
83 dB—operating
Emission levels
4.0 mg/h or less—dust
4.0 mg/h or less—ozone
1.8 mg/h or less—styrene
2.0 mg/h or less—formaldehyde
Reduction of environmentally sensitive materials
RoHS
100% lead-free solder used in PCBs—lead
0%—PVC
100% chrome-free steel plates—hexavalent chromium
0%—cadmium
0%—PBB/PBDE
Energy saving standards
Energy Star v2.0—with GWNX, Ricoh TotalFlow Print Server, and EFI Fiery controllers
Safety standards
EN60950-1
IEC60950-1
CNS14336-1
Electromagnetic Compatibility (EMC) standards
EN55032 Class A
EN61000-3-2, EN61000-3-3
EN55024
EN301489-1, EN301489-3, EN301489-17
EN62311
EN50364
CNS13438 Class A
Identification of plastic components
All plastic components that weigh more than 25 g are identified in accordance with ISO 11469 standards.
Laser standards
EN60825-1
IEC60825-1
Wireless LAN standards
EN300328
EN300330
Radio Certificate (NCC)
