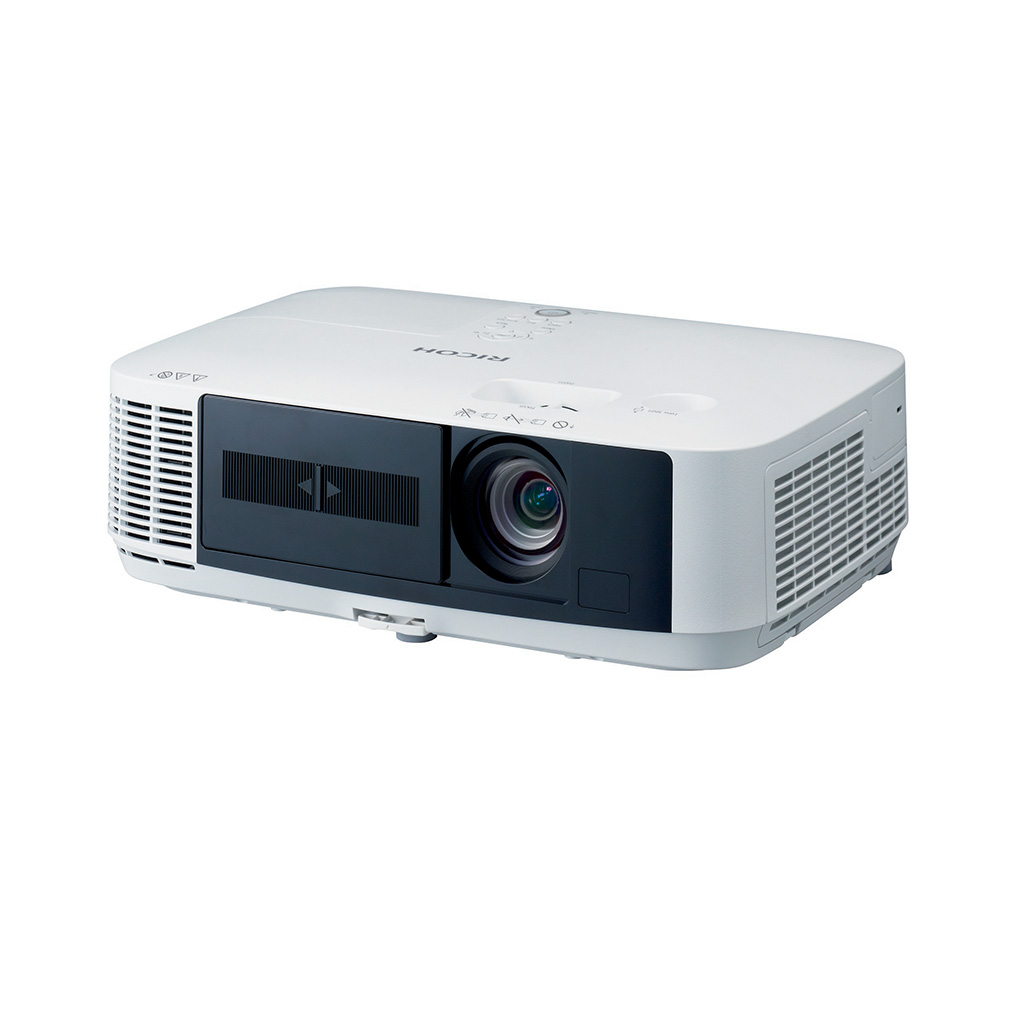

PJ WX5361N

4,500-lumen standard projector

  • Bright 4,500 lumens for large audiences
  • Quick startup and shutdown
  • Automatic screen adjustment
  • Computer-free presentations

Project a message that’s big and bold, with little fuss

Spend less time setting up your projector. The PJ WX5361N is packed with features to get you started and presenting in no time.

  1. Measure and save
    Manage CO2 emissions in economy mode with carbon metering
  2. Ready to read
    Closed captioning is supported to display subtitles
  3. Vivid display
    Bright, high resolution display of 1,200 x 800 pixels
  4. Reach the back of the room
    See images from over 14 metres away

Extra functions, bright display

Ideal for classrooms, boardrooms and exhibitions, in a portable size for easy transport. Project your presentation straight from a USB. No stress needed when setting up, as it automatically detects and corrects distortion. Make a big impact and project the same image to four separate projectors from one computer for large events. You can use different coloured backdrops with blackboard mode and still see visuals clearly.


Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • Bright 4,500 lumens for large audiences
  • Quick startup and shutdown
  • Automatic screen adjustment
  • Computer-free presentations

Specifications

Projector type
Standard
What's included

CD-ROM
Operating instructions
JPEG conversion software
Network Utility software
Projector Management Utility (includes operating instructions)

Safety instructions and quick reference guide
Included

Signal cable
RGB cable

Power cord
220 V

Remote mouse receiver
Supported

Remote control
Yes

Battery
AA x 2

Physical dimensions (W x D x H)—other
398 x 276 x 127 mm
Weight—other
4.3 kg
Projection system
LCD
Panel size
0.59 inches
Contrast
4,000:1—with Iris
Aspect ratio
16:10
Brightness
4,500 lumens
Resolution
1,280 x 800 pixels (WXGA)
Lamp type
Mercury lamp
Lamp wattage
270 W—Normal Mode
214 W—Eco Mode 1
163 W—Eco Mode 2
Lamp life
3,500 hours—Normal Mode
4,000 hours—Eco Mode 1
6,000 hours—Eco Mode 2
Lens type
Built-in
Zoom type
Manual
Zoom ratio
1:7
Focus method
Manual
Colour reproduction
10-bit signal processing—1.07 billion colours
Viewer, network—16.7 million colours
Projection size
25–300 inches
Projection ratio
1.3–2.2:1
Lens shift
Manual
Vertical, 0–0.5V
Keystone correction
4-point vertical and horizontal
Speaker
16 W x 1
Other supported features
Front ventilation, USB display, Remote mouse receiver, DICOM Simulation mode
Interfaces - standard

Wired LAN
RJ45 (10Base-T/100Base-Tx) x 1

Display input
Analogue RGB—D-SUB 15 x 1
Video—RCA x 1, S-Video x 1
Digital—HDMI x 2

Display output
Analogue RGB—D-SUB 15 x 1

Sound input
Stereo—Mini jack x 1
Microphone—Mini jack x 1
Video—RCA(L/R) x 1

Sound output
Analogue RGB—D-SUB 15 x 1
Stereo—Mini jack x 1
Stereo—Stereo L/R x 1

Control
D-SUB 9 x 1

USB port
Type-A x 1—for wireless LAN
Type-A x 1—for mouse, keyboard, memory
Type-B x 1—for USB display

Remote Desktop via network
The projector can be used and controlled remotely from a PC via network using a USB keyboard.  This is a standard feature in Windows 7 Professional, Windows Vista Professional, and Windows XP Professional with Service Pack 2 or later.

Network Projector
PC screen can be projected via network without any additional software. This is a standard feature in Windows 7 Professional/Ultimate/Enterprise, and Windows Vista Home Premium/Business/Ultimate/Enterprise

Interfaces - optional
Wireless LAN
IEEE802.11b/g/n compliant
Password protection of device
Yes
Windows

Projection Utility
Windows 7 (32-bit)
Home Basic, Home Premium, Professional, Ultimate, Enterprise

Windows Vista (32-bit)
Home Basic, Home Premium, Business, Ultimate, Enterprise

Windows 8 (32- and 64-bit)
Core, Pro, Enterprise

Projector Management Utility
Windows 7
Ultimate, Enterprise, Ultimate SP1, Enterprise SP1, Professional SP1,
Home Premium SP1

Windows 8 (32- and 64-bit)
Core, Pro, and Enterprise

Advanced Network Utility
Windows 7 (32-bit)
Home Basic, Home Premium, Professional, Ultimate, Enterprise

Windows Vista (32-bit)
Home Basic, Home Premium, Business, Ultimate, Enterprise

Windows 8 (32- and 64-bit)
Core, Pro, and Enterprise

JPEG conversion tool
Windows 7
Ultimate, Professional, Ultimate SP1, Enterprise SP1, Professional SP1, Home Premium SP1

Windows 8 (32- and 64-bit)
Core, Pro, and Enterprise

Processor
Windows 7/Windows Vista
Pentium M:
Single core 1.2 GHz equivalent or higher required
Dual core 1.5 GHz or higher recommended

Windows 8
Pentium M:
Single core 1.0 GHz equivalent or higher required
Dual core 1.0 GHz or higher recommended

Memory
Windows Vista
512 MB or more required

Windows 7/Windows 8
1 GB—for 32-bit systems
2 GB—for 64-bit systems

Note: More memory may be required to run additional applications simultaneously.

Graphics processor
Windows 7/Windows Vista
A Windows Experience Index (WEI) score 3.0 or higher for graphics performance is recommended

Resolution
Windows 7/Windows Vista
SVGA (800 × 600 dpi) or higher required
XGA (1,024 × 768 dpi) recommended

Windows 8
VGA (640 × 480 dpi) or higher required
XGA (1,024 × 768 dpi) recommended

Screen colours
High colour (15-bit, 16-bit)
True colour (24-bit, 32-bit) recommended

Note: 256 or fewer colours are not supported.

Macintosh
Advanced Network Utility for Mac—Mac OS X Version 10.6, 10.7, or 10.8
Supported languages

Operating instructions
English, German, French, Italian, Spanish, Portuguese, Swedish, Finnish, Norwegian, Danish, Dutch, Russian, Polish, Czech, Hungarian, and Simplified Chinese

JPEG conversion software
English and Japanese

Network Utility software
English, Simplified Chinese, and Japanese

Projector Management Utility
English (includes operating instructions)

Safety instructions and quick reference guide
English, French, German, Swedish, and Dutch

Standard

JPEG conversion software Type A
Available in English and Japanese

PJLink Class 1
A unified standard for operating and controlling data projectors from different vendors.

Projector Management Utility
A software application for projectors that is fully compliant with PJLink Class 1 standard. Enables the use of the projector without a video cable, via wired or wireless LAN.

Advanced Network Utility Type A
A software application that provides network connectivity to wired or wireless LAN. In Meeting Mode, projected images can be sent and received between two or more computers.

Power source
100–240 V, 50–60 Hz
Power consumption
357 W—Normal Mode
292 W—Eco Mode 1
248 W—Eco Mode 2
10 W—Standby, normal
2.8 W—Standby, network on
0.4 W—Standby, network off
Environmental standards
Restriction of Hazardous Substances (RoHS)
REACH regulations
EuP (Lot6)
Directive 2006/66/EC (batteries and accumulators)
Directive 2005/20/EC (packaging and waste)
WEEE
Safety standards
EN60950-1 (CE marking)
EN60950-1 (TUV)
IEC60950-1 (CB attestation)
Electromagnetic Compatibility (EMC) standards
EN55022
EN55024 (CE Marking)
EN61000-3-2
EN61000-3-3
AS/NZS CISPR 22 (C-Tick)
Wired LAN standards
TBR21 or ES203021 (CE Marking)
Australia A-tick Marking
New Zealand PTC200
Wireless LAN standards
EN300 330-2 (CE Marking)
EN301 489-1, EN301 489-3 (CE Marking)
EN300 328 (CE Marking)
EN301 893 (CE Marking)
EN301 489-1, EN301 489-17 (CE Marking)
Other environmental features
Quick start-up and power-off, Eco Mode 1 (60%), Eco Mode 2 (80%)
