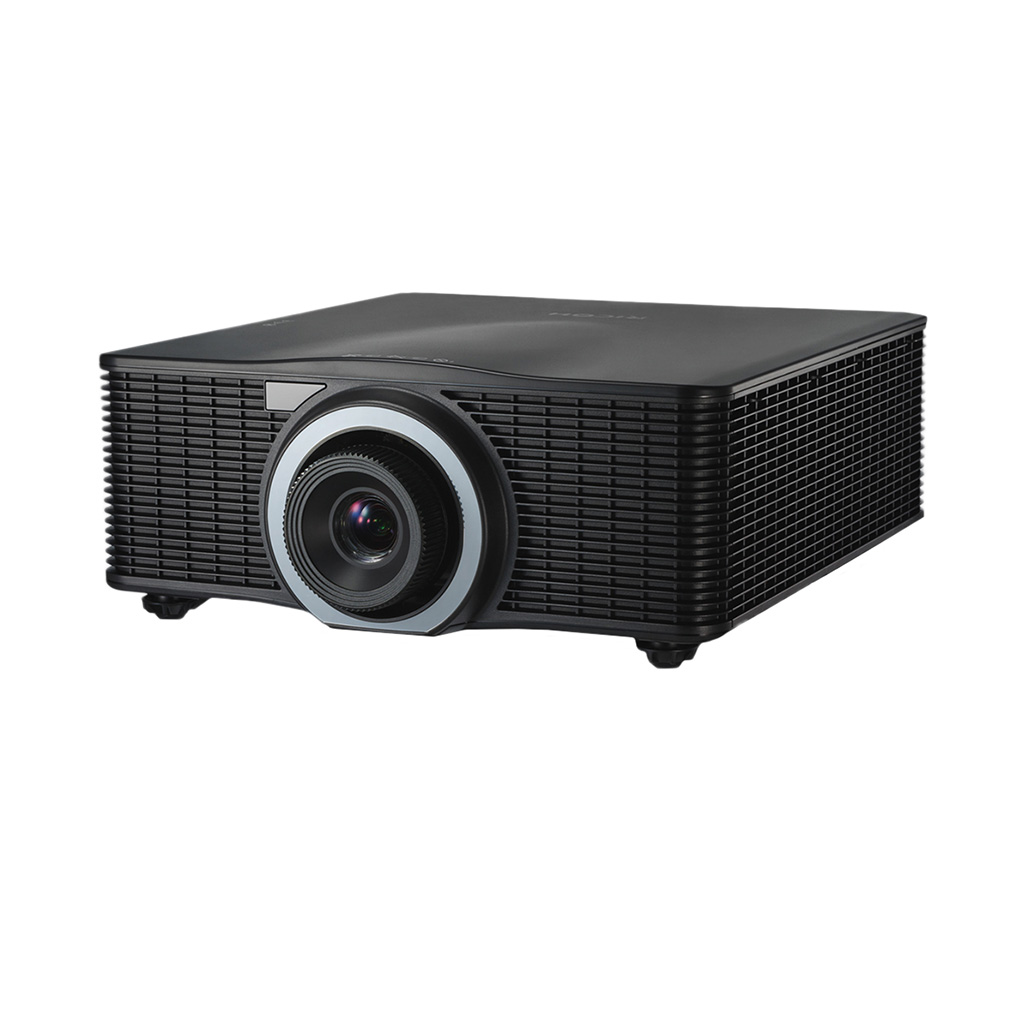

PJ WUL6280

6,000-lumen high-end laser projector

  • WUXGA Resolution (1920x1200)
  • Brightness rating of 6,000 lumens
  • Screen size up to 300 inches
  • Contrast ratio of 1200:1
Related Links
One size fits all

With a choice of five lenses, you can adjust this projector to suit your audience size.

Make a big impact at your next event or presentation, with a projector that delivers high resolution detail

Showcase your visuals and presentations for longer. The PJ WUL6280’s laser technology provides extended use and quieter performance.

  1. Fill the room
    The PJ WUL6280 is suitable for use with large audiences of 100 or more
  2. Share the details in high definition
    Industry-leading brightness puts everyone in the picture – even when it's an image up to 300 diagonal inches
  3. A presentation projector for any surface
    No need to worry about coloured walls or even blackboards with colour correction capabilities, and keystone correction to fix image distortion
  4. Easy to manage
    Connect the PJ WUL6280 projector to your network to check for issues, confirm the time remaining on the lamp and even switch it off remotely

Laser sharp delivery

Instead of mercury lamps, this projector uses laser technology which lasts 6 times longer, or 20,000 hours. This means less maintenance, reduced mercury light globes in landfill, quieter noise emission and less cost. Quality resolution boosts visual impact. Project onto walls, ceilings or floors with a choice of 5 lenses. Connect it easily to your choice of devices, with HDMI, USB and HDBaseT interface ports.

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • WUXGA Resolution (1920x1200)
  • Brightness rating of 6,000 lumens
  • Screen size up to 300 inches
  • Contrast ratio of 1200:1

Specifications

Projector type
High-end laser
What's included

Cables
RGB cable
Power cable

Conversion adapter
Not available

Remote control
Standard

Battery for remote control
AAA x 2 included

Carrier bag
Not available

CD-ROM
Instruction manual

Lens mount cover
Standard

Projection system
DLP
Contrast
1,200:1
Aspect ratio
16:10
Brightness
6,000 lumens
Resolution
1,920 x 1,200 pixels (WUXGA)
Light source
Laser diode
Light source life
20,000 hours
Lens type
Type A1—Short throw
Type A2—Wide zoom
Type A3—Standard zoom
Type A4—Long zoom
Type A5—Ultra-long zoom
Zoom type
Motorised
Zoom ratio
Depends on lens in use
Focus method
Motorised
Projection size
Depends on lens in use
Horizontal scan rate
15–91.1 KHz
Vertical scan rate
24–85 Hz
Lens shift
Motorised
Vertical +/- 100%
Horizontal +/- 30%
Keystone correction
Vertical +/- 20 degrees
Horizontal +/- 20 degrees

Note: On-screen display adjusting range is +/- 40 steps for vertical and horizontal
Input signals
Computer input signals
PC and component inputs
1080i, 1080p, 720p, 576i, 576p, 480i, 480p

Video input signals
HDTV 720p—50–60 Hz, 1080i, 1080p—50–60 Hz, 1080p—24–60 Hz
SDTV 480i, 480p, 576i, 576p
3D support
Yes
Control system
Crestron, PJ Link, AMX
Speaker
No
Other supported features
360-degree free tilt, Portrait mode, Picture in picture/Picture by picture, Pincushion, Firmware update, Colour adjustment tool
Interfaces - standard
Connection terminals
D-SUB 9-pin x 1 (PC Control)
HDMI x 1
RJ-45 x 1 (LAN)
DVI-D x 1
HDBaseT x 1
Computer In x 1
Monitor Out x 1
USB Type A x 1
YPBPR x 1
Wired in/out (3.5 mm phone jack) x 1
Service x 1
Kensington lock
Yes
Other security features
Security bar
Windows
Colour adjustment tool
Windows 8.1 /8 (64-bit, 32-bit)
Windows 7 (64-bit, 32-bit)
Processor requirement—1 GHz or greater
Memory requirement—2 GB or greater
Supported languages

Menu languages
English, French, German, Italian, Spanish, Russian, Korean, Simplified Chinese, Japanese

Read first manual languages
English, German, French, Spanish, Italian, Japanese, Simplified Chinese

Instruction manual
English, Chinese, Japanese, French, German, Italian, Spanish, Swedish, Dutch

Standard
Ricoh Colour adjustment tool
Allows to quickly and easily adjust the colour balance of both the presenter's display and the projected image.
The tool can be downloaded from Ricoh website.
Power source
100–240 V, 50–60 Hz
Power consumption
530 W—Full mode
320 W—Eco mode
0.5 W or less—Standby Mode (LAN off)
Sound power level
37 dB  or less—Standard Mode
35 dB  or less—Eco Mode
Safety standards
Restriction of Hazardous Substances (RoHS)
REACH
EuP (Lot 6)
Directive 2006/66/EC and 2005/20/EC
WEEE
EN60950-1 (TUV)
EN60950-1 (CE marking)
EN60950-1 (CB attestation)
Electromagnetic Compatibility (EMC) standards
EN55022
EN55024 (CE)
EN61000-3-2
EN61000-3-3
AS/NZS CISPR22 (C-Tick)
GB9254
Other environmental features
Eco Mode
