Ricoh Image

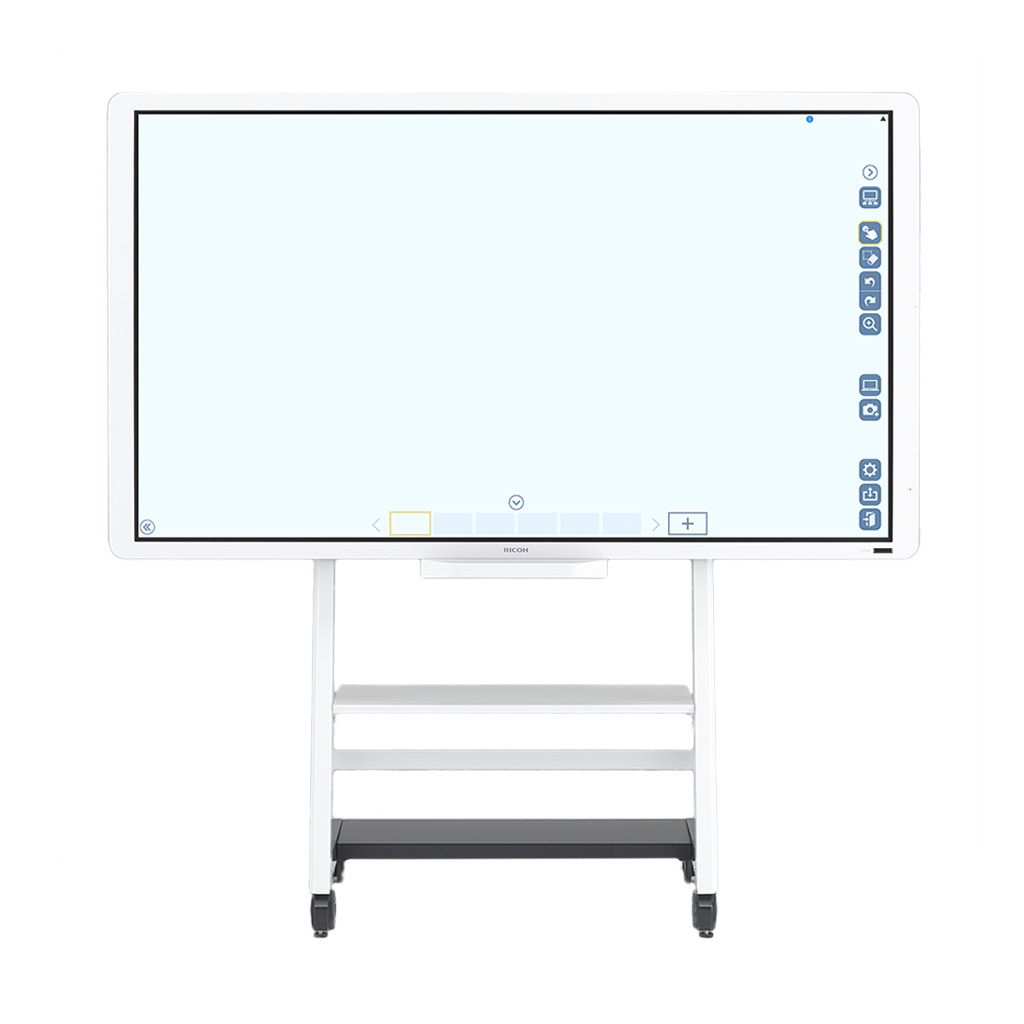

IWB D7500 Interactive whiteboard

  • 75-inch touchscreen
  • 3,840 x 2,160 pixels
  • 410 cd/m2 brightness
  • Optional remote connection

Improve alignment across departments and offices with collaboration tools that connects, simply

Share information easily, from your laptop to smartphone to Ricoh’s Interactive Whiteboard. It’s the one device that provides a single point for decision making.

The versatility of this whiteboard offers choice and simplicity for a happy, cooperative office. Operate networked computers from the whiteboard or display content from a USB. Choose from display styles, whether you want the portability of wheels to move around the office, hang on a meeting room wall or use as desktop. Working across multiple locations is simplified with real-time sharing, with no software needed. Add on Ricoh Streamline NX to limit access and keep information secure.

  1. Real time collaboration
    Edit and mark documents directly on the whiteboard. Multiple devices can connect for support across locations.
  2. Innovative handwriting recognition
    Write, scribble or draw with the electronic pen, using the whiteboards OCR recognition.
  3. Easy to use
    Designed for easy use and interactivity with touchscreen convenience.
  4. Share results easily
    Share results by producing PDFs that can be sent to email, USB or directly to office folders, network or on the cloud.

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • 75-inch touchscreen
  • 3,840 x 2,160 pixels
  • 410 cd/m2 brightness
  • Optional remote connection


Operation panel
1 x main switch
7 x tact switch
What's included

Touch pen
1 pcs

Note: There is also a felt-tipped touch pen available as an option, if additional pens are required.

Remote controller

Remote controller battery
2 x AAA batteries

Power cord

RGB cable

USB cable
Yes—for PC operation

HDMI cable

Bluetooth dongle

Quick guide and safety instructions

OPS slot
Yes x 1

Physical dimensions (WxDxH)—mainframe
1,783 × 198 × 1,055 mm
90 kg
Panel type
LCD multi touch-screen display
Panel size
75 inches
Effective display area
1,649.664 x 927.936 mm
3,840 x 2,160 pixels (4K)
Colour reproduction
1.07 billion colours maximum
Colour temperature
11,000 K—cool
6,500 K—warm
9,300 K—neutral
5,000 K—low blue light
410 cd/m2
Aspect ratio
Display settings

Landscape orientation, Picture Mode—including Low Blue Light Mode, Backlight, Contrast, Brightness, Chroma, Phase, Sharpness, Colour temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source PAP Setting, Aspect, Adjust screen, Touch feature, Language, Power Save Control Setting, Touch control settings, Set monitor ID, Advanced information

Pixel pitch
0.429 mm
Response speed
8 ms
Viewing angle HV
Left and right 178 degrees, up and down 178 degrees

1 x Line 3.5 mm

1 x speaker out


Video input
1 x VGA
1 x HDMI
1 x DVI-D
1 x DisplayPort

Video output
1 x DisplayPort



Mic sensitivity
-28±3 dB

Signal to noise ratio
58 dB

Maximum input level
110 dB

Maximum pickup distance
5 m

Touch technology
Touch points
10 points maximum—four points with finger
Touch resolution
80 pt/sec—1,920 x 1,080 spatial resolution
Touch output
USB 2.0 Type B—not available when controller is installed
Detection system electronic pen
Radio frequency transmission
Touch panel cover glass
4 mm anti-glare
Interfaces - standard

1 x serial RS-232C input
1 x serial RS-232C output
2 x USB 2.0 Type B—for touch control

USB Hub 1
2 x USB 2.0 Type A—for Bluetooth dongle

USB Hub 2
4 x USB 3.0 Type A

Bluetooth v2.1+EDR v3.0, v4.0

Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover

Interfaces - optional
With Ricoh IWB controllers
10Base-T/100Base-Tx/1000Base-T (Wired LAN)
IEEE 802.11a/b/g/n (Wireless LAN)

Remote connection
Allows real-time sharing of content and drawings.
Remote connection is available in the same network (intranet) and VPN environments.

Multi-touch sensor
Windows 7—Ultimate, Professional, Home Premium
Windows Embedded 7—Standard
Windows 8—Windows 8, Pro, Enterprise
Windows Embedded 8—Standard
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows 10—Home, Pro, Enterprise, IoT

Single-touch sensor
Windows 7—Home Basic

RICOH Interactive Whiteboard controller Type 1 (optional)
Windows Embedded Standard 8

RICOH OS-free Interactive Whiteboard controller Type 1 (optional)
Windows 7—must be installed after setup at customer site

Mac OS X 10.10–10.12—single-touch sensor
Supported languages
On-screen display languages
Japanese, English, French, German, Italian, Spanish, Dutch, Russian, Polish, Swedish, Norwegian, Finnish
Power source
100–240 V, 50–60 Hz
Power consumption
420 W or less—full configuration
0.5 W or less—in Standby Mode
Reduction of environmentally sensitive materials
Restriction of Hazardous Substances (RoHS)
Environmental standards
EU battery (2006/66/EC)
EU packaging (94/62/EC)
ErP Lot 3
ErP Lot 7
Directive 2006/66/EC
Directive 2005/20/EC
Safety standards
EN60950-1 (CE marking)
EN60950-1 (TUV)
IEC60950-1 (CB attestation)
AS/NZS 3112:2000—Australia, New Zealand
CNS14336 (RPC)—Taiwan
Electromagnetic Compatibility (EMC) standards
EN61000-3-2 or EN61000-3-12
EN61000-3-3 or EN61000-3-11
EN55024 (CE)
AS/NZS CISPR 22 (C-Tick)
CNS13438 (RPC)—Taiwan
Wired LAN standards
Wireless LAN standards
EN300328 (CE Marking)
EN301489-1, EN301489-17 (CE Marking)
Operating environment
